Cable design based on Westar 110315 — DVI-I input with analog and I2C EDID reference cable
FPD.DEV part number: CBL-032468-00
Based on the pinouts of Westar 110315.

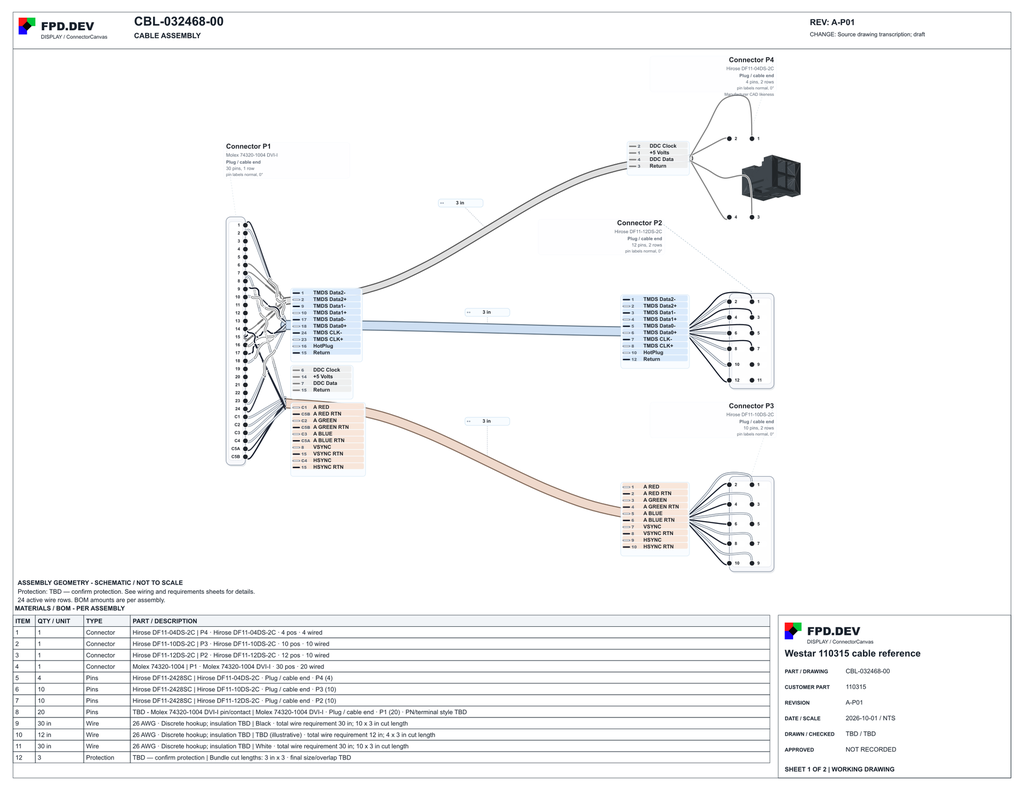

VP14-3ATI Manual Rev B, PDF page 32 / printed 27, Figure 14, drawing 110315. 3 in ±0.5 in; 26 AWG. Splices near P1. Named analog terminals C1, C2, C3, C4, C5A, C5B are retained on the drawing; saved numeric positions 25–30 correspond respectively. Reference drawing number, not verified orderable PN. Colors outside explicit +/- pair convention require confirmation. Draft reference transcription; not released for manufacture. Schematic is not to scale.
Choose your cable length
Reference length: 3 in.
Length options for quotation: 1.5, 3, 6 and 12 inches. Shorter, longer and custom lengths are welcome. Final length and suitability are confirmed with your quotation.
Create and suggest changes using the ConnectorCanvas™ workspace below, then choose Prepare FPD.DEV enquiry to open an email to info@fpd.dev. You can review the email before sending.
Source drawing / pinout reference
View both ConnectorCanvas™ drawing pages
Connectors, contacts and wire
| End | Housing / connector | Pin / contact |
|---|---|---|
| P1 | CON-032510-00 — Molex 74320-1004 | TBD / integrated contact - confirm |
| P2 | CON-032440-00 — Hirose DF11-12DS-2C | CON-032494-00 — Hirose DF11-2428SC |
| P3 | CON-032439-00 — Hirose DF11-10DS-2C | CON-032494-00 — Hirose DF11-2428SC |
| P4 | CON-032436-00 — Hirose DF11-04DS-2C | CON-032494-00 — Hirose DF11-2428SC |
Wire specification
- 10 conductors — 26 AWG; Discrete hookup; insulation TBD; colour Black.
- 10 conductors — 26 AWG; Discrete hookup; insulation TBD; colour White.
- 4 conductors — 26 AWG; Discrete hookup; insulation TBD; colour TBD (illustrative gray).
Alpha reference specifications: 1852 (28 AWG, PDF) and 1853 (26 AWG, PDF). Both specify stranded tinned copper and PVC, 600 V RMS and -55 to +105 C; confirm diameter and required standard before choosing an equivalent. These references do not change a source UL10086 or UL1007 requirement.
Wire is specified by gauge, conductor construction, insulation, colour and required ratings. Details not established by the source remain TBD. A source brand is a reference, not an automatic approved substitution.
Wire catalog references — compare specification before selection
- WRE-032260-XX — Hook-up wire kit, 30 AWG, silicone, 300 V, five colours, 32.81 ft per colour
- WRE-032220-XX — Hook-up wire, 26 AWG, stranded, six colours, 100 ft per spool; conductor metal and insulation TBD
- WRE-032270-XX — Twisted-pair wire, 24 AWG, stranded, black/white, 100 ft; insulation TBD
- WRE-032300-XX — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, orange, 30 m / 100 ft
- WRE-032370-XX — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, purple, 30 m / 100 ft
- WRE-032330-XX — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, white, 30 m / 100 ft
- WRE-032340-XX — Hook-up wire, 30 AWG, stranded tinned copper, PVC, UL1007, blue, 50 m / 164 ft
- WRE-032320-XX — Hook-up wire, 30 AWG, stranded tinned copper, PVC, UL1007, green, 50 m / 164 ft
- WRE-032280-XX — Hook-up wire, 30 AWG, stranded tinned copper, PVC, UL1007, gray, 50 m / 164 ft
- WRE-032310-XX — Hook-up wire, 30 AWG, stranded tinned copper, PVC, UL1007, orange, 50 m / 164 ft
- WRE-032180-XX — Wrapping wire, 30 AWG, 8 colours, 250 m; conductor and insulation TBD
- WRE-032360-00 — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, black
- WRE-032290-00 — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, gray
- WRE-032350-00 — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, red
- WRE-032511-00 — Hook-up wire, 28 AWG, 7/36 tinned copper, PVC, 600 V, 105 C, black, 100 ft roll
- WRE-032512-00 — Hook-up wire, 28 AWG, 7/36 tinned copper, PVC, 600 V, 105 C, red, 100 ft roll
Confirm terminal wire range, insulation diameter and exact ordering suffix before manufacture.
Pricing is available by quotation. Save products to your Interest List to request a quote for several items, or contact us about this product.
