Cable design based on Westar 110692 — HD/SD video input reference harness
FPD.DEV part number: CBL-032469-00
Based on the pinouts of Westar 110692.
VP14-3ATI Manual Rev B, PDF page 33 / printed 28, Figure 15, drawing 110692. Twist each signal with its return. Cable length, gauge, colors and exact RCA/S-Video ordering codes not specified. J4 explicitly drawn as DF11-14DP-2DSA; confirm physical cable-end arrangement rather than substituting a housing. S-Video T1/T2/T3 chassis tabs shown grounded locally; not additional signal wires to J4. Draft reference transcription; not released for manufacture. Schematic is not to scale.
Choose your cable length
Reference length: TBD.
Length options for quotation: 6, 12, 18, 24 and 36 inches. Shorter, longer and custom lengths are welcome. Final length and suitability are confirmed with your quotation.
Create and suggest changes using the ConnectorCanvas™ workspace below, then choose Prepare FPD.DEV enquiry to open an email to info@fpd.dev. You can review the email before sending.

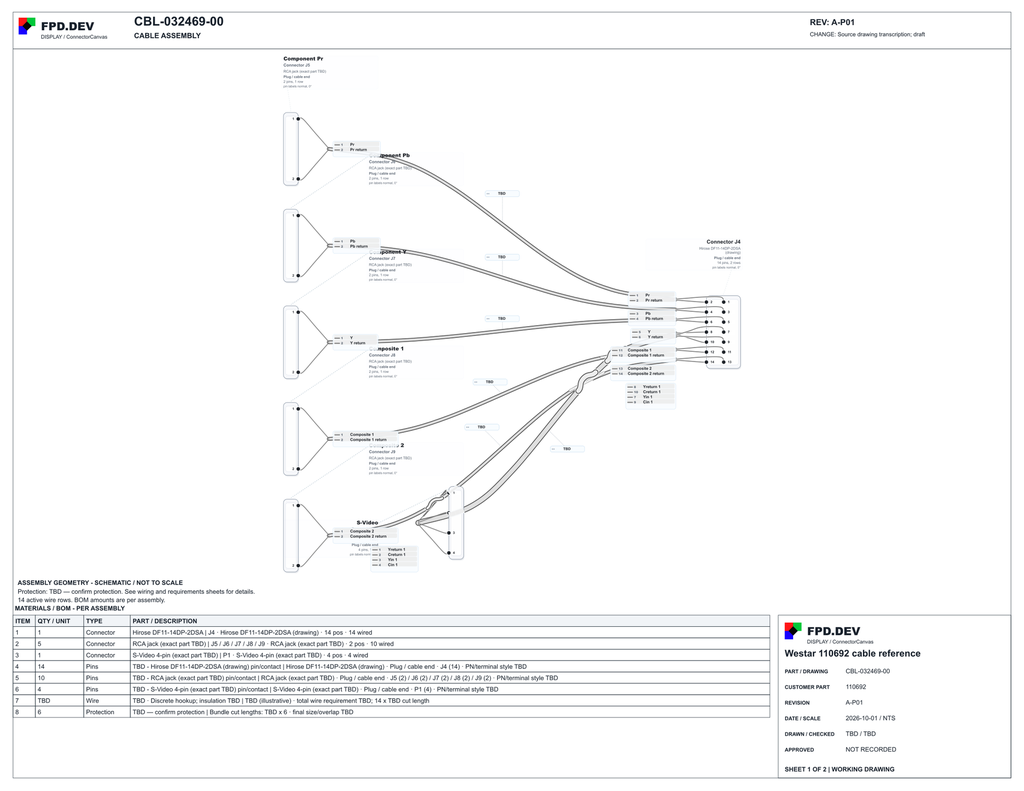

Source drawing / pinout reference
View both ConnectorCanvas™ drawing pages
Connectors, contacts and wire
| End | Housing / connector | Pin / contact |
|---|---|---|
| J4 | CON-032500-00 — Hirose DF11-14DP-2DSA | TBD / integrated contact - confirm |
| J5 | RCA jack (exact part TBD) | TBD / integrated contact - confirm |
| J6 | RCA jack (exact part TBD) | TBD / integrated contact - confirm |
| J7 | RCA jack (exact part TBD) | TBD / integrated contact - confirm |
| J8 | RCA jack (exact part TBD) | TBD / integrated contact - confirm |
| J9 | RCA jack (exact part TBD) | TBD / integrated contact - confirm |
| P1 | S-Video 4-pin (exact part TBD) | TBD / integrated contact - confirm |
Wire specification
- 14 conductors — TBD; Discrete hookup; insulation TBD; colour TBD (illustrative gray).
Alpha reference specifications: 1852 (28 AWG, PDF) and 1853 (26 AWG, PDF). Both specify stranded tinned copper and PVC, 600 V RMS and -55 to +105 C; confirm diameter and required standard before choosing an equivalent. These references do not change a source UL10086 or UL1007 requirement.
Wire is specified by gauge, conductor construction, insulation, colour and required ratings. Details not established by the source remain TBD. A source brand is a reference, not an automatic approved substitution.
Wire catalog references — compare specification before selection
- WRE-032260-XX — Hook-up wire kit, 30 AWG, silicone, 300 V, five colours, 32.81 ft per colour
- WRE-032220-XX — Hook-up wire, 26 AWG, stranded, six colours, 100 ft per spool; conductor metal and insulation TBD
- WRE-032270-XX — Twisted-pair wire, 24 AWG, stranded, black/white, 100 ft; insulation TBD
- WRE-032300-XX — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, orange, 30 m / 100 ft
- WRE-032370-XX — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, purple, 30 m / 100 ft
- WRE-032330-XX — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, white, 30 m / 100 ft
- WRE-032340-XX — Hook-up wire, 30 AWG, stranded tinned copper, PVC, UL1007, blue, 50 m / 164 ft
- WRE-032320-XX — Hook-up wire, 30 AWG, stranded tinned copper, PVC, UL1007, green, 50 m / 164 ft
- WRE-032280-XX — Hook-up wire, 30 AWG, stranded tinned copper, PVC, UL1007, gray, 50 m / 164 ft
- WRE-032310-XX — Hook-up wire, 30 AWG, stranded tinned copper, PVC, UL1007, orange, 50 m / 164 ft
- WRE-032180-XX — Wrapping wire, 30 AWG, 8 colours, 250 m; conductor and insulation TBD
- WRE-032360-00 — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, black
- WRE-032290-00 — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, gray
- WRE-032350-00 — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, red
- WRE-032511-00 — Hook-up wire, 28 AWG, 7/36 tinned copper, PVC, 600 V, 105 C, black, 100 ft roll
- WRE-032512-00 — Hook-up wire, 28 AWG, 7/36 tinned copper, PVC, 600 V, 105 C, red, 100 ft roll
Confirm terminal wire range, insulation diameter and exact ordering suffix before manufacture.
