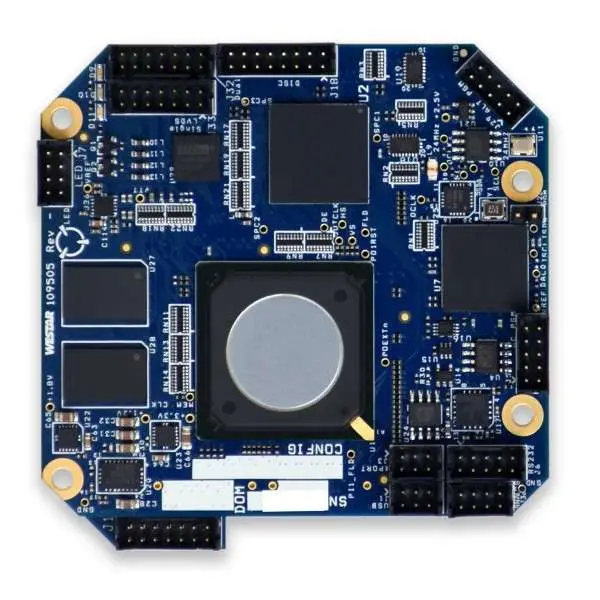

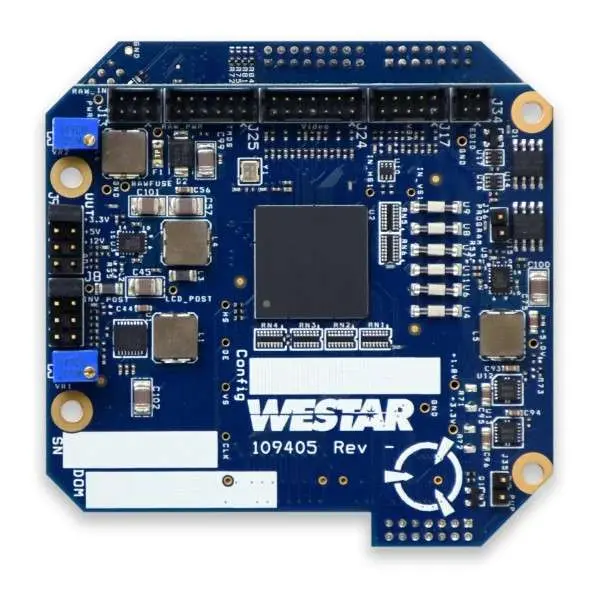

Digitalview VP-14-3ATI

The VP14-3ATI LCD Controller interfaces with 3ATI displays and other TFT panels requiring a small form factor. The VP14-3ATI is the ideal LCD controller for applications requiring high fidelity analog or digital video conversion, re-sizing, and frame rate conversion for resolutions up to 1920×1200.

Features

Standard and custom video formats up to WUXGA

Converts a wide variety of video formats including RS-343, RS-170, DVI, RGBsog, RGBHV, NTSC/PAL to LVDS

Scaling, Rotating, Windowing, and Area-of-Interest Control

Video area-of-interest control, resizing, rotating, retiming, and reformatting

Single or Dual LVDS up to 165 MPixels/sec

Single or Dual LVDS (up to 165MPixels/sec) at 8 bits/color. Supports parallel video out up to 165 MPixels/sec

Applications

3ATI displays

Configurable video electronics for 3ATI displays

Ruggedized tactical displays

LCD controller for ruggedized tactical displays

Embedded applications

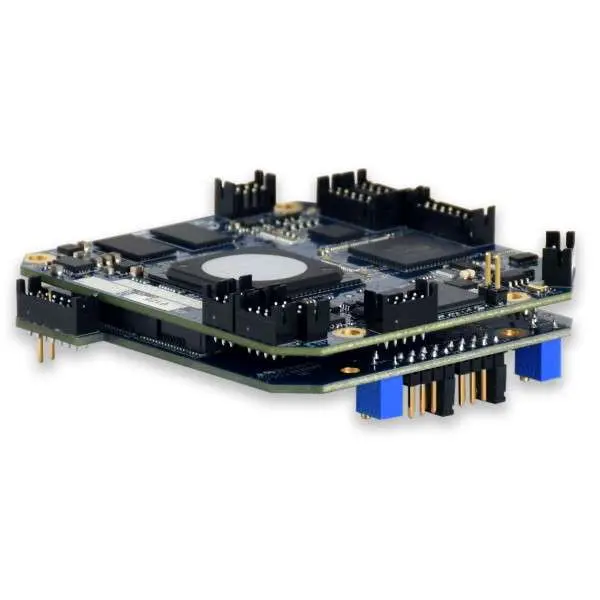

With its low-profile design and locking high-density Hirose connectors, the VP7 is ideal for space-constrained displays

Powerful Configuration Utility

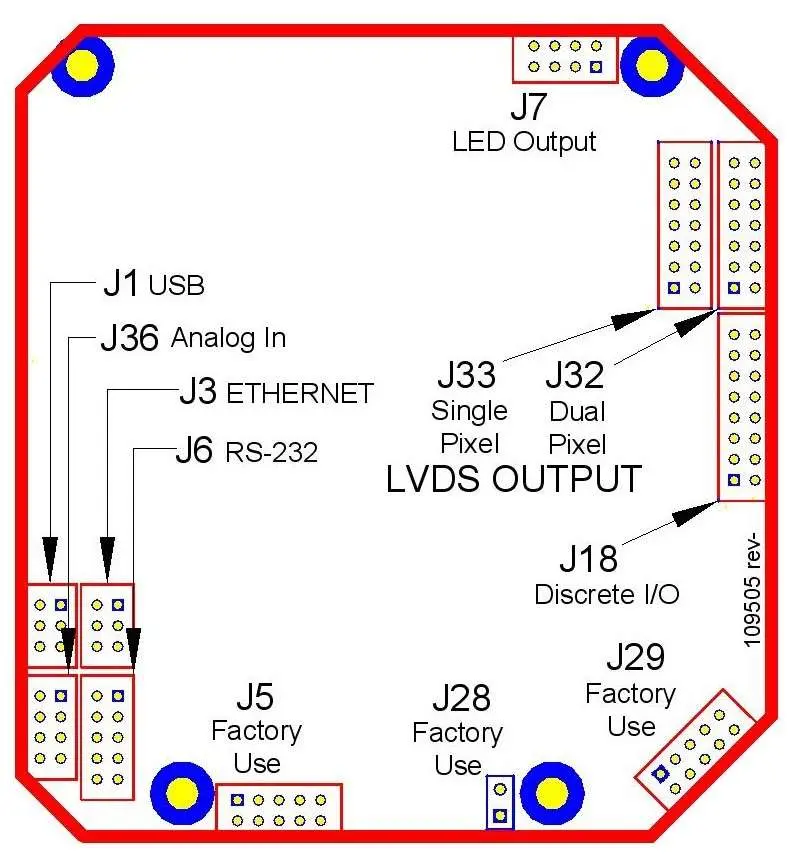

The VP14-3ATI is configured via a utility that supports in-the-field firmware, FPGA and parameter (BIOS) updates. The VP14-3ATI can be dynamically controlled over RS232, USB, or Ethernet with parameters stored in non-volatile memory to retain desired settings. Commands support a multi-mode approach to define:

• A prioritized list of all applicable video input modes that can be automatically detected
• Mode-independent parameters, such as scaled (output) area-of-interest and location within output resolution
• Synchronization method
• Sequences for power up, loss of video and video detection
