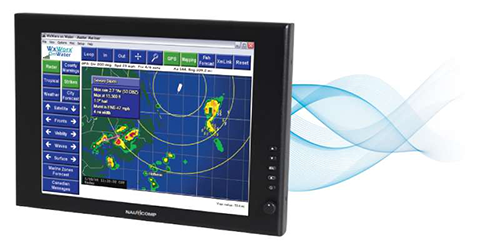

Nauticomp Genesis Series Displays

Nauticomp Genesis Series Displays

https://www.fpd.dev/web/image/product.template/104/image_1920?unique=3f38598


The new cost effective Genesis Series has arrived. With highly efficient LED Backlight Technology, 2 inputs, 1 DVI & 1 VGA, our 15 and 19 displays combine todays cutting edge technology with ease of use. This product includes our famous dim to red technology, with a slim case design so todays user can put a larger display into a smaller space.

15" Genesis Series Technical Data Sheet

19" Genesis Series Technical Data Sheet ​

User Manual
Install Guide
Brochure

Designed around marine and military requirequirements.
The Genesis Series displays provide an economical, rugged solution for both Marine and Military applications.

Product Features:
Sunlight Readable – Ready for all environments
Bonded Glass – Optically Enhanced for clarity
Deep Dimming – 0 to 100% via Potentiometer
Extended Temperature Range on 15 model

$ 4,950.00 4950.0 USD $ 4,950.00

$ 4,950.00

Contact for Availability

    This combination does not exist.

    Contact Us

    NOTE:  On $0.00 Items we will provide quote usually within 24 hours.
    We will verify everything prior to shipment and contact you if there are any discrepancies

    Terms and Conditions
    If not in stock please contact for lead time
    and current pricing

    Product Detail: HRL / Nauticomp Genesis Series Displays
    Internal Reference: HRL-3001-00


    Specifications

    Size 15" Diagonal, 19" Diagonal
    Manufacturer Nauticomp
    Resoulution 1024 x 768 RGB
    Brightness 700 cd/m2
    Backlight Life 50,000 Hours Typical
    Display Type Active Matrix TFT
    Pixel Pitch 0.297mm
    Input Voltage 12V
    Input Current 1.5A
    Wattage 18W Max
    Limited Warranty 2 Years
    Optics Bonded
    Dimming Deep
    Disp. Surface Glass
    Disp. Finish Anti-Reflection
