Pricing is available by quotation. Save products to your Interest List to request a quote for several items, or contact us about this product.
Internal Reference:
LDC-030012-00
Distribute one DisplayPort source across up to four HDMI displays with independent layout adjustment.
| Role | Standalone four-display controller |
|---|---|
| Video input | 1 DisplayPort 1.2; up to 3840 x 2160 at 60 Hz |
| Video outputs | 4 HDMI; up to 1920 x 1200 at 60 Hz each |
| Layout features | Crop, scale, rotate and bezel management |
| Control | Ethernet / PowerWall |
| Power | 12 VDC; 15 W maximum; AC adapter |
| Operating temperature | 0 to 45 C |
Manufacturer reference: Matrox QuadHead2Go Q185 appliance / Q2G-DP4K.
For complete displays or downstream panel controllers. Input canvas resolution and per-display output resolution are separate requirements.

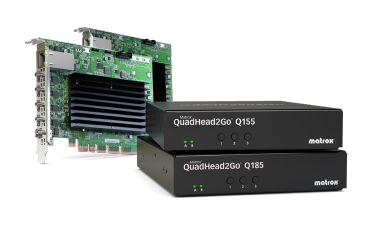

Photo shows the controller family, including appliance and card variants; it is representative rather than an isolated image of this model.
Confirm configuration, availability, lead time and project compatibility with us.
