Hirose DF11-12DS-2C connector
FPD.DEV part number: CON-032440-00
Hirose DF11-12DS-2C connector
Manufacturer: Hirose
Manufacturer/source part number: Hirose DF11-12DS-2C

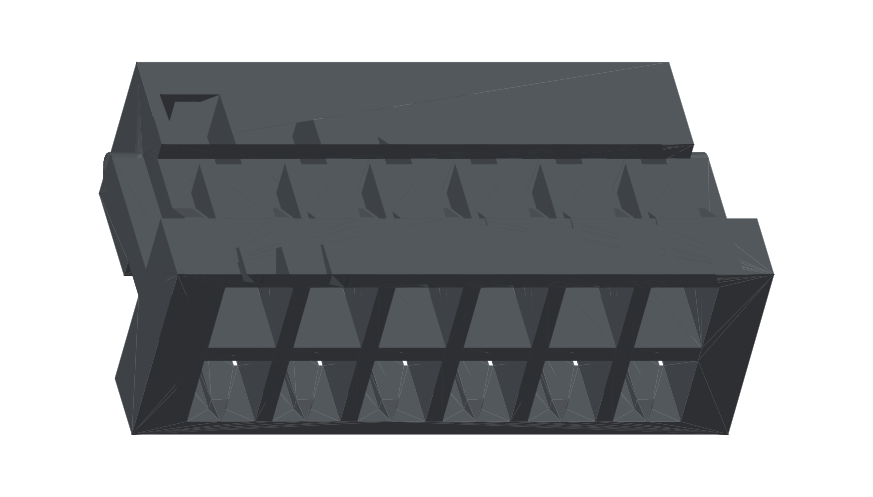

Rendered from the exact supplied STEP model of Hirose DF11-12DS-2C. Material color is illustrative.
Datasheets and STEP files
Download Hirose DF11-12DS-2C STEP · View interactive 3D model
Exact supplied STEP filed and used for the housing representation. Pin locations remain schematic; verify viewing face, numbering and fit.
Component and cable references
Related housings and contacts
- CON-032494-00 — Hirose DF11-2428SC crimp contact
Legacy library association. DF11-2428SC ordering suffix needs confirmation against current Hirose contact data before ordering.
Used in cable designs
Pricing is available by quotation. Save products to your Interest List to request a quote for several items, or contact us about this product.
