SQR-3 Square Display — High Bright Standard Module

Name: SQR-3 Square Display — High Bright Standard Module
SKU: SQR-3003-00

480 × 480 square LCD with a 60.22 × 60.33 mm active area. A High Bright reference module for custom instrument, avionics and simulation display development.

FPD part number: SQR-3003-00

View specifications and documentation ↓

Customize Your Display ↓

Display Aspect Ratio
- 1:1 Square
Display Resolution
- Square / 480x480
Backlight Brightness
- High Bright Backlight Included

Save products to your Interest List to share your requirements, or contact us about this product.

Contacta con nosotros

Añadir a lista de deseos

Terms and Conditions

Referencia interna: SQR-3003-00

Specifications

SQR-3 Square Display — High Bright Module

FPD reference	SQR-3003-00
Display construction	Normally black IPS LCD
Resolution (pixels)	480 × 480
Active area, W × H (mm)	60.22 × 60.33
Reference outline, W × H × D (mm)	77 × 77 × 16
Reference luminance	1,000 cd/m²; measurement conditions and final assembly output to confirm
Display interface	Single-channel LVDS
Backlight / driver	Edge-lit LED with PWM driver
Front surface	Optically bonded AR cover glass
Color depth	16.7 million colors (8-bit RGB)
Reference chassis	Standard finish (suffix -00)
Electrical / environmental limits	Confirm for the selected assembly and application

Integration notes

Reference values support initial selection. Confirm the released drawing, connector pinout, power, dimming, thermal design and optical measurement conditions before design approval. Share the applicable NVIS type/class and environmental requirements when discussing your configuration.

Documentation

Discuss this display

Customize Your Display

Start with SQR-3 in its standard High Bright configuration. Explore options, review your configuration and save a draft component list for discussion.

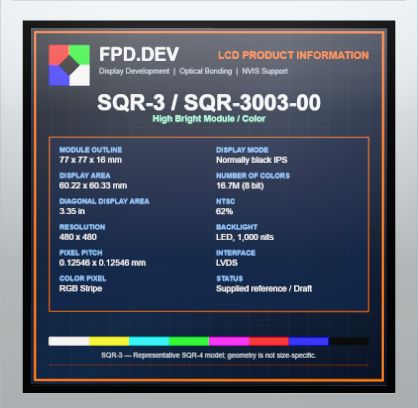

The interactive model illustrates configuration choices. SQR-3, SQR-5, SQR-6 and SQR-7 use representative SQR-4 geometry; selected-family data follows your choice. Final dimensions, construction and performance require engineering review. SQR-7 driver, glass and bonding scope require confirmation.

Open the designer in a separate tab ↗

Especificaciones

Display Aspect Ratio	1:1 Square
Display Resolution	Square / 480x480
Backlight Brightness	High Bright Backlight Included
