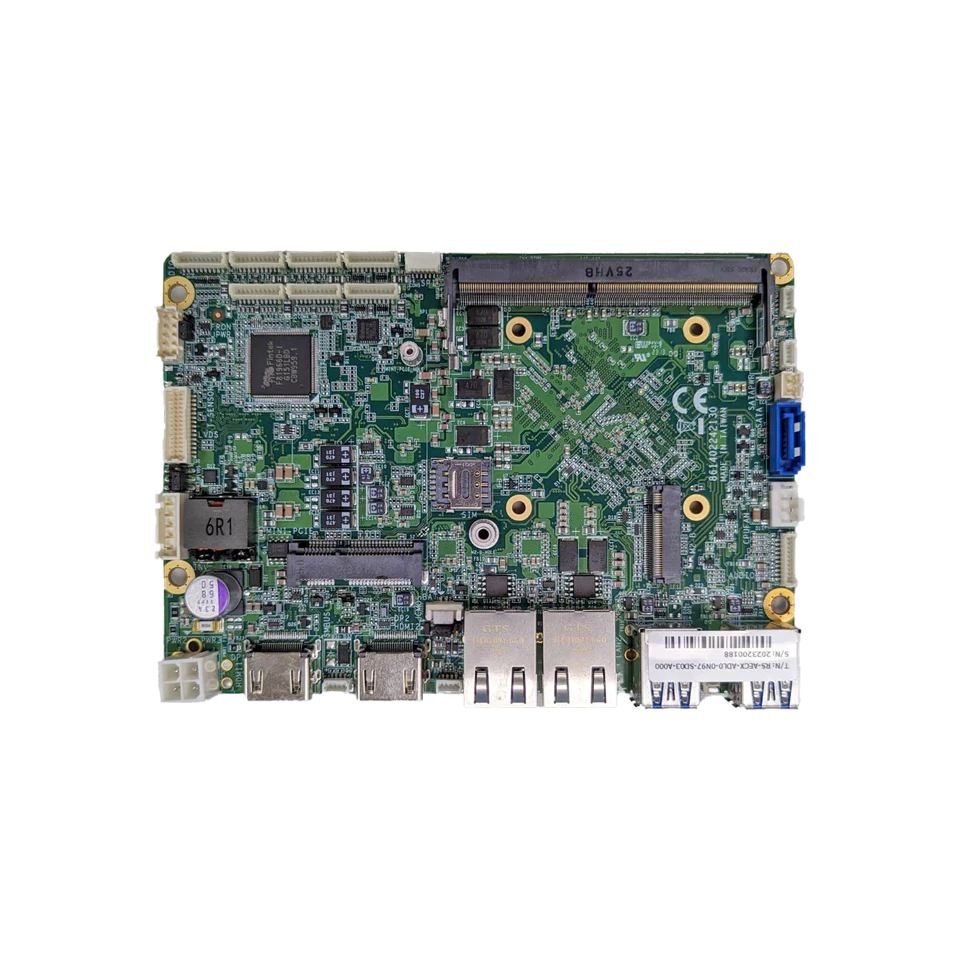

Litemax AECX-ADL0 SBC
A compact Intel-based board for display-driven equipment and industrial interfaces. Work with FPD.DEV to match the board, display outputs and installation requirements.
Discuss your application →PN: SBC-03301-00
View Interest List →A short description is enough to start. We can help clarify the requirements.
Specifications and options.
| Specification | Manufacturer-listed capability |
|---|---|
| Platform | 3.5-inch embedded board; Intel Alder Lake-N platform |
| Memory | One 260-pin SO-DIMM; up to 32 GB DDR4-3200 |
| Display | Two DP ports with HDMI co-layout option; LVDS / eDP option; up to three displays |
| Networking | Two Intel 2.5 Gigabit Ethernet ports |
| Expansion / storage | Full-size mini PCIe; M.2 B+M 3042 / 2242; SATA III |
| I/O | Six COM; four USB 3.2 and two USB 2.0 |
| Power input | 9–36 V DC |
| Board dimensions | 146 × 102 mm (5.75 × 4.02 in) |
| Standard operating temperature | 0–60 °C (32–140 °F) |
CPU, display routing, expansion wiring and connector options depend on the supplied configuration. Confirm the ordering code, operating temperature, OS support and mechanical drawing before design commitment.
Where it can fit.
Multi-display kiosks
Evaluate multiple outputs, content playback and enclosure cooling together.
Equipment controllers
Use the serial and network interfaces for product-specific integration.
Application examples are starting points for evaluation, not a statement of qualification or certification.
From platform choice to a working system.
FPD.DEV can help review display compatibility, cables, power input, mounting and operating-system support. Send the panel resolution, preferred interfaces, environment and expected quantity for an initial fit review.
If sourcing origin matters, include it in your inquiry. We prefer suitable U.S.-made options and can evaluate alternatives; manufacturing origin must be verified for the actual part and supply route.
Tell us what you are building.
Share the application, display or I/O needs, and any timing or quantity target. Uncertain details can wait for the conversation.
Start a Litemax AECX-ADL0 inquiry →Technical reference: Litemax manufacturer information. Specifications reviewed September 2026; confirm the selected configuration before design release.
