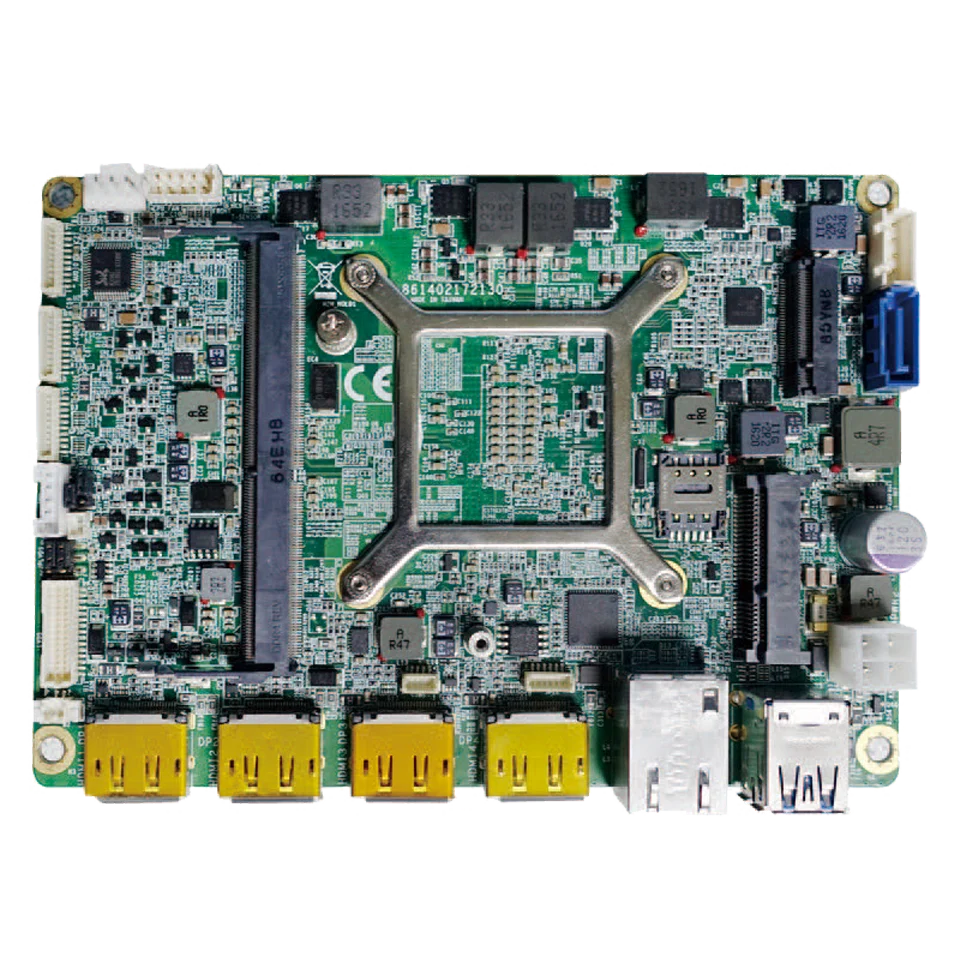

Litemax AECX-R2K1 SBC
AMD Ryzen Embedded processing for compact graphics and display systems. FPD.DEV helps evaluate the board as part of the complete display assembly.
Discuss your application →View Interest List →A short description is enough to start. We can help clarify the requirements.
Specifications and options.
| Specification | Manufacturer-listed capability |
|---|---|
| Platform | 3.5-inch embedded board; AMD Ryzen Embedded R2000 APU |
| Architecture | Zen CPU and Radeon Vega graphics |
| Memory | Two 260-pin SO-DIMMs; up to 32 GB DDR4-3200 |
| Display | Four DP / HDMI outputs; optional LVDS; 4K / 2K display support |
| Networking | One Intel Gigabit Ethernet port |
| Expansion / storage | Full-size mini PCIe with nano SIM; M.2 M-key 2280; SATA III |
| USB | Two USB 3.1 and three USB 2.0 |
| Power input | 12 V DC or 19–24 V DC configuration |
| Board dimensions | 146 × 102 mm (5.75 × 4.02 in) |
| Operating temperature | 0–60 °C (32–140 °F) standard; extended-temperature options require confirmation |
Confirm the exact CPU, display-output arrangement, power-input version, operating temperature and supported OS. Optional interfaces are not necessarily available together.
Where it can fit.
Simulator auxiliary panels
Support application displays and interfaces within the wider simulator architecture.
Industrial graphics
Match rendering requirements, connectors and thermal design to a packaged system.
Application examples are starting points for evaluation, not a statement of qualification or certification.
From platform choice to a working system.
We can review panel compatibility, output conversion, power, cooling, cabling and mounting. A useful first inquiry includes display count, resolution, software environment and space constraints.
If sourcing origin matters, include it in your inquiry. We prefer suitable U.S.-made options and can evaluate alternatives; manufacturing origin must be verified for the actual part and supply route.
Tell us what you are building.
Share the application, display or I/O needs, and any timing or quantity target. Uncertain details can wait for the conversation.
Start a Litemax AECX-R2K1 inquiry →Technical reference: Litemax manufacturer information. Specifications reviewed September 2026; confirm the selected configuration before design release.
Image: Litemax; used with permission.
