Microchip SAMA5D2 Processors

A Cortex-A5 platform for compact Linux equipment and embedded interfaces. Compare discrete processors and memory-integrated options around your display, communications and board constraints.

Discuss your application →
FPD.DEV family PN: MPR-03109-00

Start with a short description. We can help select the exact device and integration path.

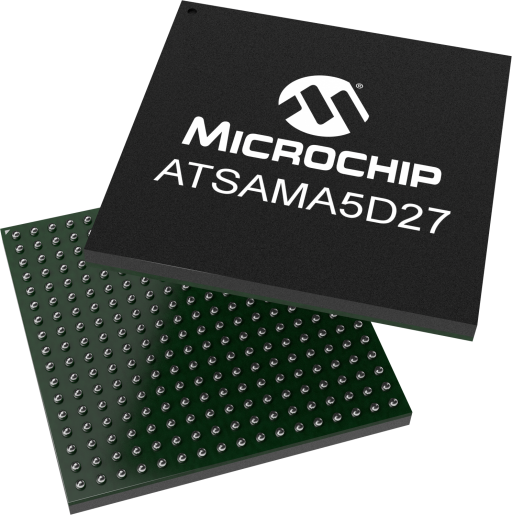

Microchip ATSAMA5D27 manufacturer package image; one device in the SAMA5D2 range.
Microchip ATSAMA5D27 manufacturer package image; one device in the SAMA5D2 range. Select the image to open the documentation.

Compare selected options.

Device optionProcessing / interfacesSelection focus
SAMA5D21 / D22 / D23Family PN: MPR-03109-00Cortex-A5 up to 500 MHz; 16-bit DDR interfaceCompact configurations; CAN and security features vary
SAMA5D27 / D28Family PN: MPR-03109-00Cortex-A5 up to 500 MHz; 16/32-bit DDR; 2 CAN controllersMore memory-interface flexibility and connectivity
SAMA5D29Family PN: MPR-03109-00Cortex-A5 up to 500 MHz; 2 CAN FD controllersAutomotive-qualified device option; confirm ordering grade
SAMA5D27 SiP optionsFamily PN: MPR-03109-00Processor with integrated DDR2 or LPDDR2 memoryReduce external-memory layout work; choose memory density

The family includes an LCD controller, camera interface and Ethernet MAC. Select the device and package for the necessary pins, security features and memory interface. A SiP reduces some board complexity but still requires a complete power, storage and interface design.

The FPD.DEV PN identifies this family for inquiry and review. Manufacturer part numbers in the table identify options; final ordering suffixes, availability and scope are confirmed with your quotation.

Where it can fit.

Compact operator interfaces

Assess simple display and touch needs, boot behavior and software maintenance.

Connected equipment

Integrate networking, peripheral I/O and Linux services around a defined power budget.

Custom carrier or board design

Compare a discrete processor, SiP and module before committing to PCB complexity.

Define the integration before the part.

Family features are not identical across devices. Automotive qualification on a selected part does not establish aerospace approval. Confirm lifecycle, memory configuration and software support during selection.

Microchip is a U.S.-headquartered supplier. Exact manufacturing origin and traceability are ordering-code and lot dependent.

We prefer U.S. and other suitable non-China sourcing when quality, performance and availability fit the application. Tell us if origin or traceability is a firm requirement.

Tell us what the system needs to do.

Share the application, interfaces, environment and timing you know. We will work through the remaining choices with you.

Discuss Microchip SAMA5D2 →

Manufacturer references: Microchip SAMA5D2 family · SAMA5D2 device selection table. Manufacturer specifications govern the selected device.

Datasheets and development boards

Open a part number for its product page. Family references help start a selection; the exact device, package and ordering code are confirmed for your application.
