XL2608060003 cable harness — 17.125984 in main wires
FPD.DEV part number: CBL-032463-00
FPD.DEV cable design based on the pinouts of XL2608060003 project drawing, with the recorded Connector E pin swap.
Choose your cable length
Reference length: 435 mm (17.126 in) main wires; 40 mm jumper.
Length options for quotation: 6, 12, 18, 24 and 36 inches. Shorter, longer and custom lengths are welcome. Final length and suitability are confirmed with your quotation.
Create and suggest changes using the ConnectorCanvas™ workspace below, then choose Prepare FPD.DEV enquiry to open an email to info@fpd.dev. You can review the email before sending.

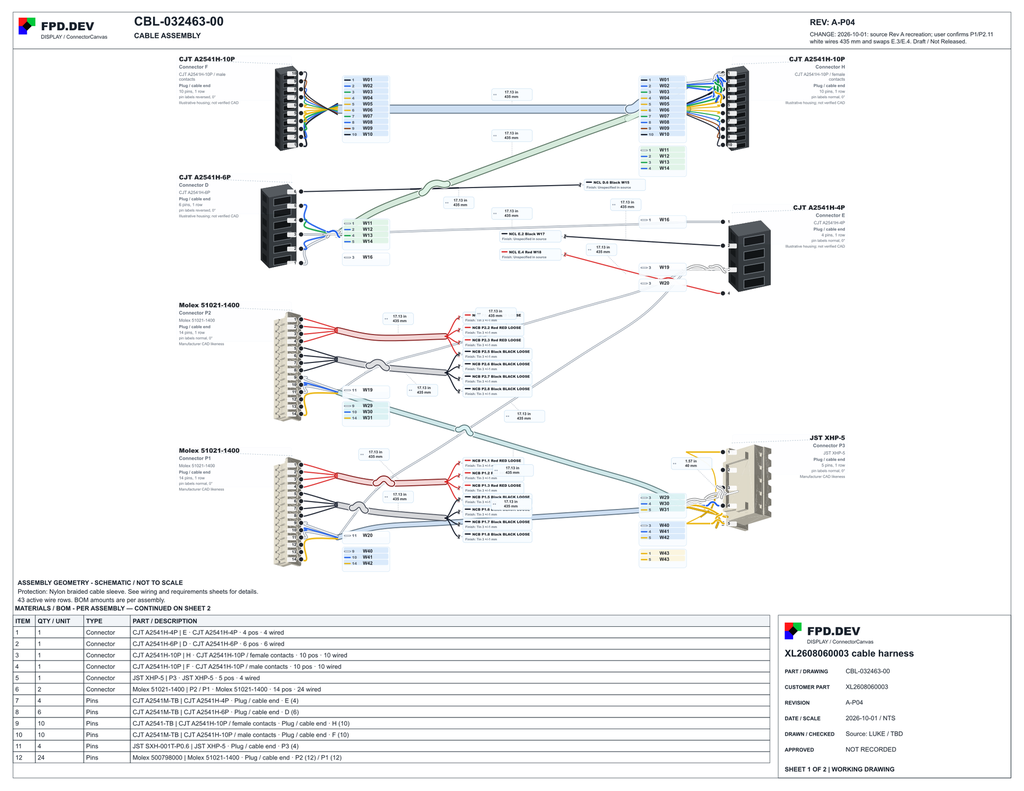

View both ConnectorCanvas™ drawing pages
Connectors, contacts and wire
| End | Housing / connector | Pin / contact |
|---|---|---|
| F | CON-032460-00 — CJT A2541H-10P | CON-032502-00 — CJT A2541M-TB |
| H | CON-032460-00 — CJT A2541H-10P | CON-032503-00 — CJT A2541-TB |
| D | CON-032461-00 — CJT A2541H-6P | CON-032502-00 — CJT A2541M-TB |
| E | CON-032462-00 — CJT A2541H-4P | CON-032502-00 — CJT A2541M-TB |
| P2 | CON-032415-00 — Molex 51021-1400 | CON-032475-00 — Molex 500798000 |
| P1 | CON-032415-00 — Molex 51021-1400 | CON-032475-00 — Molex 500798000 |
| P3 | CON-032428-00 — JST XHP-5 | CON-032482-00 — JST SXH-001T-P0.6 |
Wire specification
- 12 conductors — 26 AWG; UL10086; colour Black.
- 6 conductors — 26 AWG; UL10086; colour Blue.
- 3 conductors — 26 AWG; UL10086; colour #16a34a.
- 6 conductors — 26 AWG; UL10086; colour Yellow.
- 1 conductors — 26 AWG; UL10086; colour #92400e.
- 6 conductors — 26 AWG; UL10086; colour White.
- 9 conductors — 26 AWG; UL10086; colour #dc2626.
Alpha reference specifications: 1852 (28 AWG, PDF) and 1853 (26 AWG, PDF). Both specify stranded tinned copper and PVC, 600 V RMS and -55 to +105 C; confirm diameter and required standard before choosing an equivalent. These references do not change a source UL10086 or UL1007 requirement.
Wire is specified by gauge, conductor construction, insulation, colour and required ratings. Details not established by the source remain TBD. A source brand is a reference, not an automatic approved substitution.
Wire catalog references — compare specification before selection
- WRE-032260-XX — Hook-up wire kit, 30 AWG, silicone, 300 V, five colours, 32.81 ft per colour
- WRE-032220-XX — Hook-up wire, 26 AWG, stranded, six colours, 100 ft per spool; conductor metal and insulation TBD
- WRE-032270-XX — Twisted-pair wire, 24 AWG, stranded, black/white, 100 ft; insulation TBD
- WRE-032300-XX — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, orange, 30 m / 100 ft
- WRE-032370-XX — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, purple, 30 m / 100 ft
- WRE-032330-XX — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, white, 30 m / 100 ft
- WRE-032340-XX — Hook-up wire, 30 AWG, stranded tinned copper, PVC, UL1007, blue, 50 m / 164 ft
- WRE-032320-XX — Hook-up wire, 30 AWG, stranded tinned copper, PVC, UL1007, green, 50 m / 164 ft
- WRE-032280-XX — Hook-up wire, 30 AWG, stranded tinned copper, PVC, UL1007, gray, 50 m / 164 ft
- WRE-032310-XX — Hook-up wire, 30 AWG, stranded tinned copper, PVC, UL1007, orange, 50 m / 164 ft
- WRE-032180-XX — Wrapping wire, 30 AWG, 8 colours, 250 m; conductor and insulation TBD
- WRE-032360-00 — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, black
- WRE-032290-00 — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, gray
- WRE-032350-00 — Hook-up wire, 26 AWG, stranded tinned copper, PVC, UL1007, red
- WRE-032511-00 — Hook-up wire, 28 AWG, 7/36 tinned copper, PVC, 600 V, 105 C, black, 100 ft roll
- WRE-032512-00 — Hook-up wire, 28 AWG, 7/36 tinned copper, PVC, 600 V, 105 C, red, 100 ft roll
Confirm terminal wire range, insulation diameter and exact ordering suffix before manufacture.
Pricing is available by quotation. Save products to your Interest List to request a quote for several items, or contact us about this product.
