JST SXH-001T-P0.6 crimp contact
FPD.DEV part number: CON-032482-00
JST SXH-001T-P0.6 crimp contact
Manufacturer: JST
Manufacturer/source part number: JST SXH-001T-P0.6
Exact housing STEP model not yet filed. See the datasheet for dimensions and part selection.
Used in cable designs
- CBL-032461-00 — Cable design based on Applied Concepts 27-R0215
- CBL-032462-00 — Cable design based on Digital View 426122200-3
- CBL-032463-00 — XL2608060003 cable harness — 17.125984 in main wires
- CBL-032464-00 — Cable design based on Applied Concepts 27-R0093 — ID5 to Digital View cable with solder splices
Includes draft planning references; inclusion is not a manufacturing approval.
Related housings and contacts
- CON-032420-00 — JST XHP-2 connector

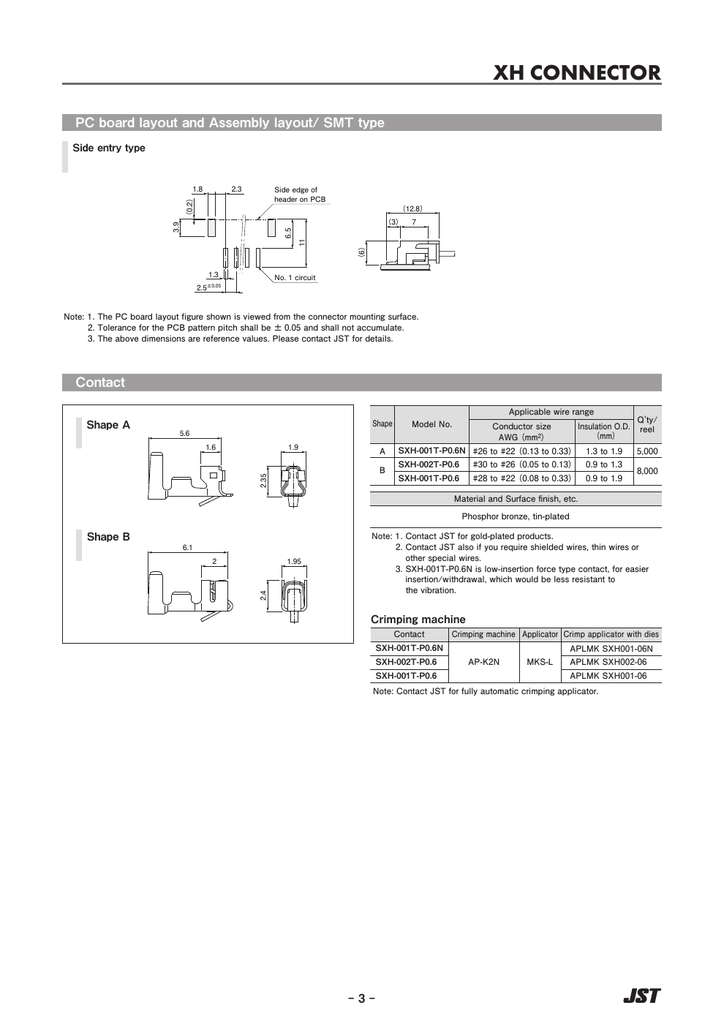

JST XH catalog, pages 3–4: select contact for the specified wire gauge and insulation diameter. - CON-032421-00 — JST XHP-4 connector
JST XH catalog, pages 3–4: select contact for the specified wire gauge and insulation diameter. - CON-032428-00 — JST XHP-5 connector
JST XH catalog, pages 3–4: select contact for the specified wire gauge and insulation diameter. - CON-032429-00 — JST XHP-12 connector
JST XH catalog, pages 3–4: select contact for the specified wire gauge and insulation diameter.
Pricing is available by quotation. Save products to your Interest List to request a quote for several items, or contact us about this product.
