Hirose FH41-68S-0.5SH(05) — 68-Position 0.50 mm FPC/FFC Connector
Hirose FH41-68S-0.5SH(05) FPC/FFC connector
68-position, 0.50 mm pitch connector identified by Sharp for the LQ080Y5DZ03A 8.0-inch TFT LCD panel. This catalog entry preserves the exact manufacturer suffix (05) shown in Sharp specification LCY-12058A.
Engineering breakout and mating flex
The FPD.DEV FPC-030001-000 adapter provides a 5-inch, 68-contact flex tail and 40 + 28 flying-lead breakout. Download its A-P02 preliminary drawing from the adapter page. Mechanical fit and electrical integration require confirmation before production.
Custom Breakout Boards for Engineering: FPD.DEV can develop connector breakout boards, custom FPC/FFC adapters and cable assemblies for evaluation, prototyping and test fixtures. Contact us with the panel, connector, pin mapping and required interfaces.
Reference documents and sourcing

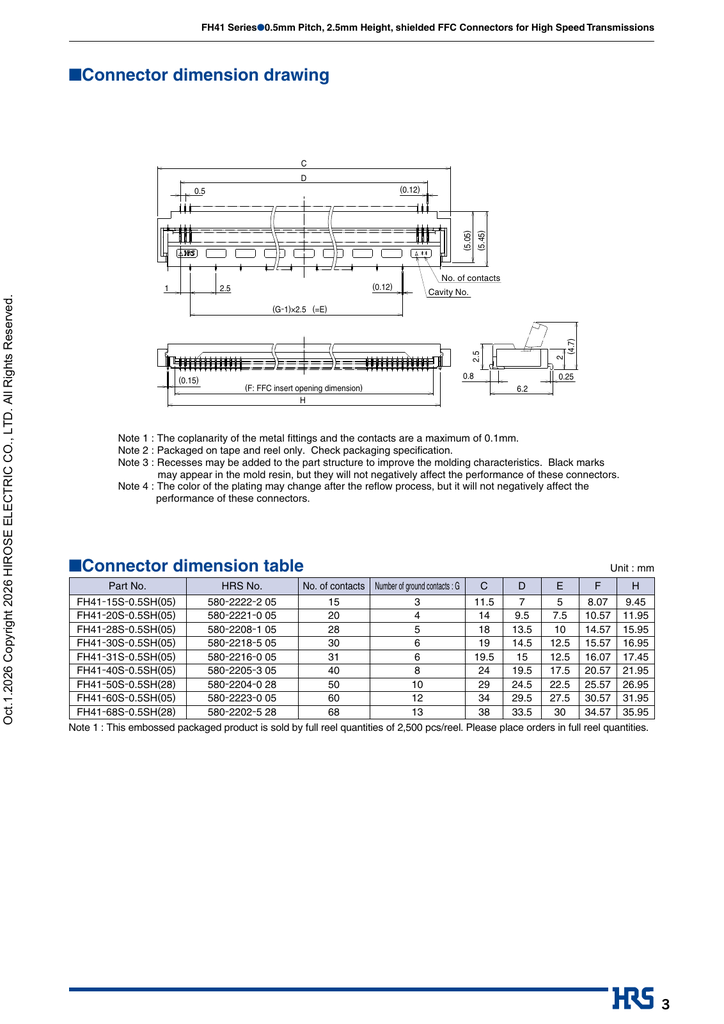

Product image: Hirose FH41 family dimension drawing, shown for reference. The current catalog table lists the 68-position (28) variant; confirm the exact (05) mechanical specification before design release.
- Sharp LQ080Y5DZ03A product and datasheet — the Sharp specification identifies FH41-68S-0.5SH(05).
- Hirose current FH41-68S-0.5SH(28) reference is a different suffix; it is not represented here as a verified substitute for (05).
Contact us about exact (05) availability. Stock, lead time and replacement suitability are subject to supplier and engineering confirmation. This is a connector listing, not an LCD driver board.
