68-Contact FPC Breakout Adapter — 5 in Flex / 40 + 28 Flying Leads
68-Pin Hirose FH41-68S-0.5SH(05) FPC Breakout Adapter
FPC-030001-000 | Rev A-P02

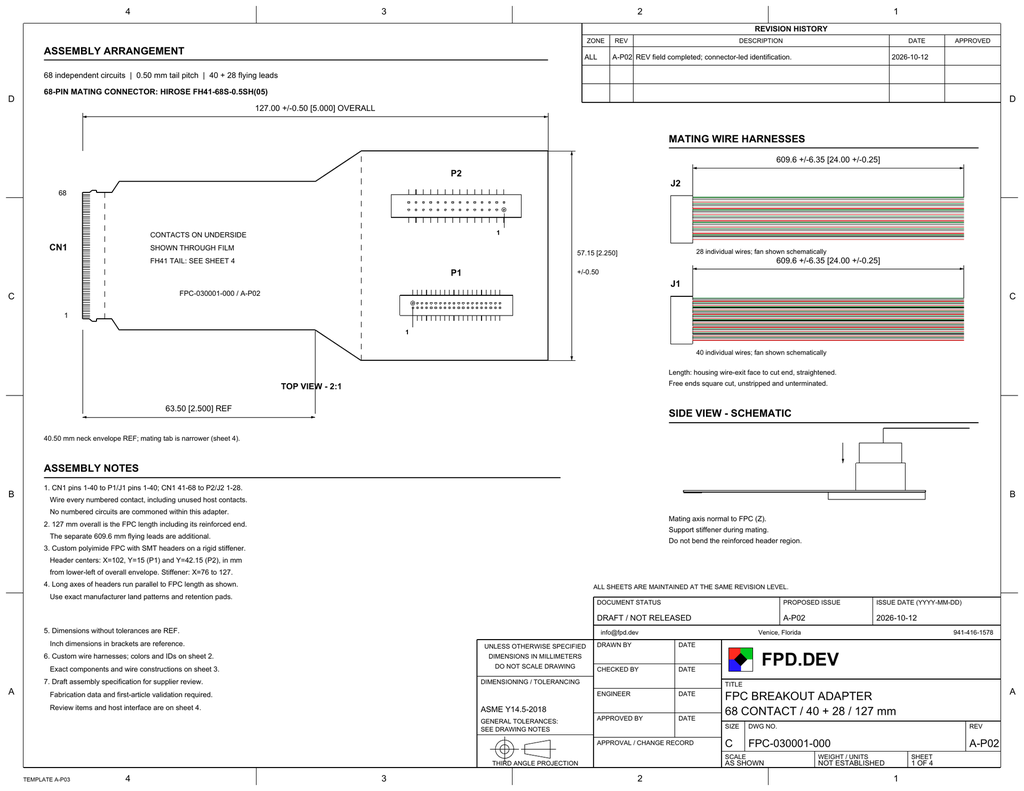

Download Product Drawing — PDF, Rev A-P02
Custom 68-contact FPC-to-wire breakout assembly with a 0.50 mm pitch flex tail intended to mate with the 68-pin Hirose FH41-68S-0.5SH(05) connector. Use it for panel development, interface prototyping and test fixtures that use this connector. Confirm the pinout, mechanical fit and electrical requirements for each application.
The 5.000 in (127 mm) flex carries all 68 contacts independently: CN1 pins 1–40 to the 40-position P1/J1 connector, and pins 41–68 to the 28-position P2/J2 connector. Each detachable harness has 24 in leads with unstripped, unterminated free ends. Wire colors repeat red, white, black and green; individual wire IDs identify every circuit.
Includes a reinforced custom flex with Hirose DF13 40-position and DF11 28-position headers, mating housings, crimp contacts and 28 AWG wires specified in the drawing. The host connector and connected equipment are not supplied.
Drawing and Interface References
Download the four-sheet A-P02 assembly drawing for dimensions, all 68 connections, connector and wire part numbers, and interface details.
Example panel: Sharp LQ080Y5DZ03A — specifications and datasheet
Rev A-P02 is a draft assembly specification. Legacy connector fit, fabrication details and first-article validation remain to be confirmed. This passive adapter requires application-appropriate electronics and power supplies.
Custom Breakout Boards for Engineering
FPD.DEV offers custom breakout boards, FPC/FFC adapters and cable assemblies for display development, prototyping and bench testing. Request custom pin mappings, connector families and pitches, cable lengths, labeled test points, and mating wire harnesses to suit your engineering setup.
Send your LCD or connector part number, datasheet, required pinout, mechanical constraints and prototype quantity. We can define a custom interface for your application.
Request a Custom Engineering Breakout Board
Save products to your Interest List to share your requirements, or contact us about this product.
