Index-Matched ITO EMI Glass + BBAR — 4.0 mm, 25 × 16 in
Index-Matched ITO EMI Glass + BBAR — 4.0 mm, 25 × 16 in
Polished float glass; pencil/C edge; scratch/dig 60/40 or better. Side 1: 4 Ω/sq ion-beam sputtered, index-matched ITO for air; R ≤0.70%, T ≥92% at 420–680 nm. Side 2: BBAR; average R ≤0.35%, T ≥95% at 420–680 nm, 0–15° incidence. Optical values are per-side, not total assembly transmission. Coating nonuniformity ±2.5%. Shielding performance depends on frequency, contacts, grounding and enclosure integration; no system attenuation rating is established.

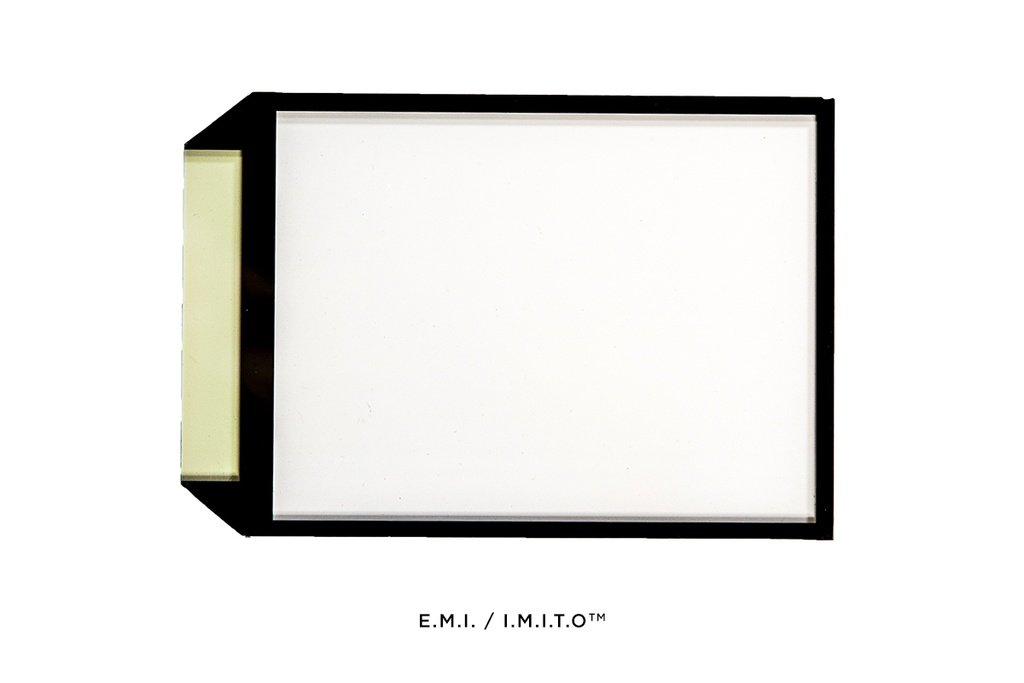

Representative application image; sheet geometry and supplied features must be confirmed. Frames, masks, contacts and busbars are not included unless specified.
Contact us for current specifications, pricing and availability.
USA manufacturing option. Available with USA manufacturing; confirm country of manufacture for your order.
Pricing is available by quotation. Save products to your Interest List to request a quote for several items, or contact us about this product.
