LCD Enhancements

Improve your LCD optical stack, thermal performance, shielding and touch interface. Explore AR-coated cover glass, ITO heaters, EMI shields, optical bonding materials, thin films and coatings, and custom capacitive or infrared touch panels. Select a family reference or an existing material, then define the dimensions, interfaces and performance requirements for your application.

Custom AR Cover Glass

PN: LCE-03001-00

Cover glass with anti-reflection coating, configured for the LCD viewing area, mechanical envelope and front-surface requirements.

Custom ITO Display Heater

PN: LCE-03002-00

Transparent ITO heater for an LCD or cover-glass assembly, configured around the required heating area, electrical supply and temperature-control approach.

Custom Display EMI Shield

PN: LCE-03003-00

Transparent conductive display-window shield, configured with its cover-glass support, grounding connection and enclosure interface.

AR Optical Film

PN: LCE-03004-00

Anti-reflection optical film for display surface enhancement. Select the substrate, adhesive, surface finish and optical requirements for the intended stack.

HEA Optical Film

PN: LCE-03005-00

HEA optical film for display reflection-control applications, selected to suit the substrate, viewing requirements and assembly process.

ITO Conductive Optical Film

PN: LCE-03006-00

Transparent ITO-coated optical film for conductive display-layer applications. The electrical contacts and final function are defined for each design.

IR-Rejecting Hot-Mirror Coating

PN: LCE-03007-00

Hot-mirror coating or coated substrate that transmits visible light while reflecting infrared. Select the spectral band and incidence angle for the display optical path.

Custom Projected Capacitive Touch Panel

PN: LCE-03008-00

Projected capacitive touch panel customized for the display opening, cover design and host interface. Define sensor geometry, controller integration and optical options for your application.

Custom Infrared Touch Panel

PN: LCE-03009-00

Infrared touch frame or panel assembly customized around the display opening and enclosure. Define the sensing aperture, bezel, controller and host connection.

JDSU HEA Glass - 1.1 mm, Single-Side Coating

PN: GLS-3002-01

1.1 mm glass with a single-side HEA coating for display optical-stack development. Discuss the required cut size, coating orientation and integration with your display.

AR Soda-Lime Cover Glass - 1.1 mm, Cut to Size

PN: GLS-3002-99

1.1 mm soda-lime glass with anti-reflection treatment on one side, supplied to a specified cut size. Share your drawing and display integration requirements for a quotation.

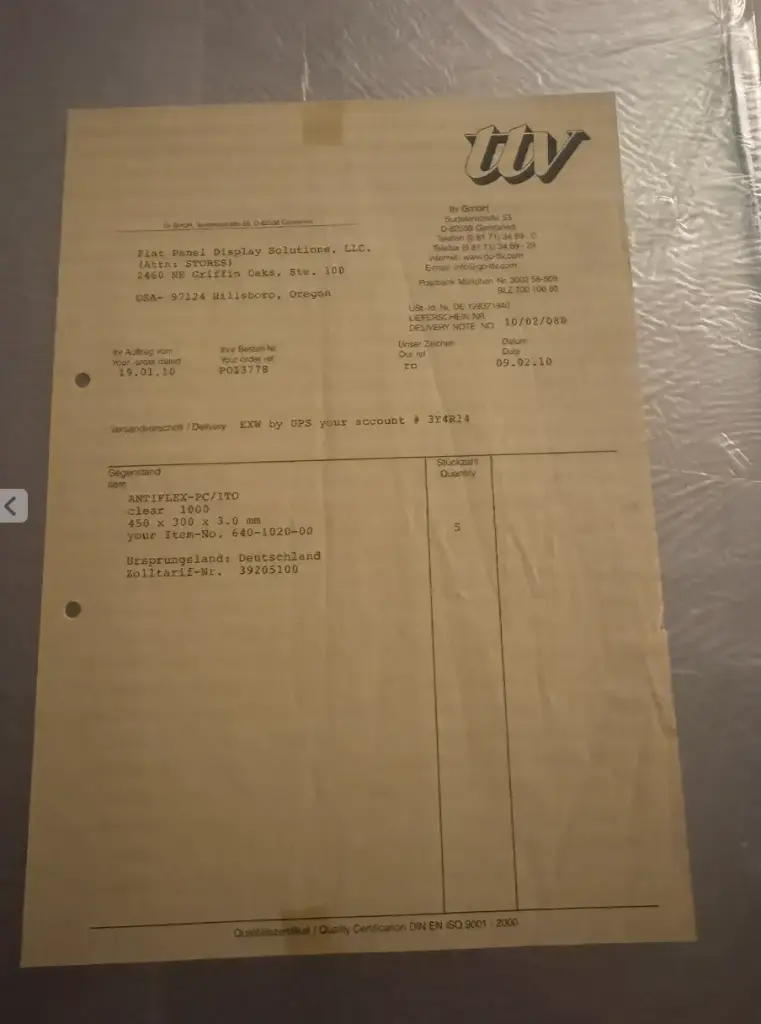

PLC / ANTIFLEX -PC/ITO, 30Ohm/sq. / Clear 1000/450.0 x 300.0 x 3.0mm

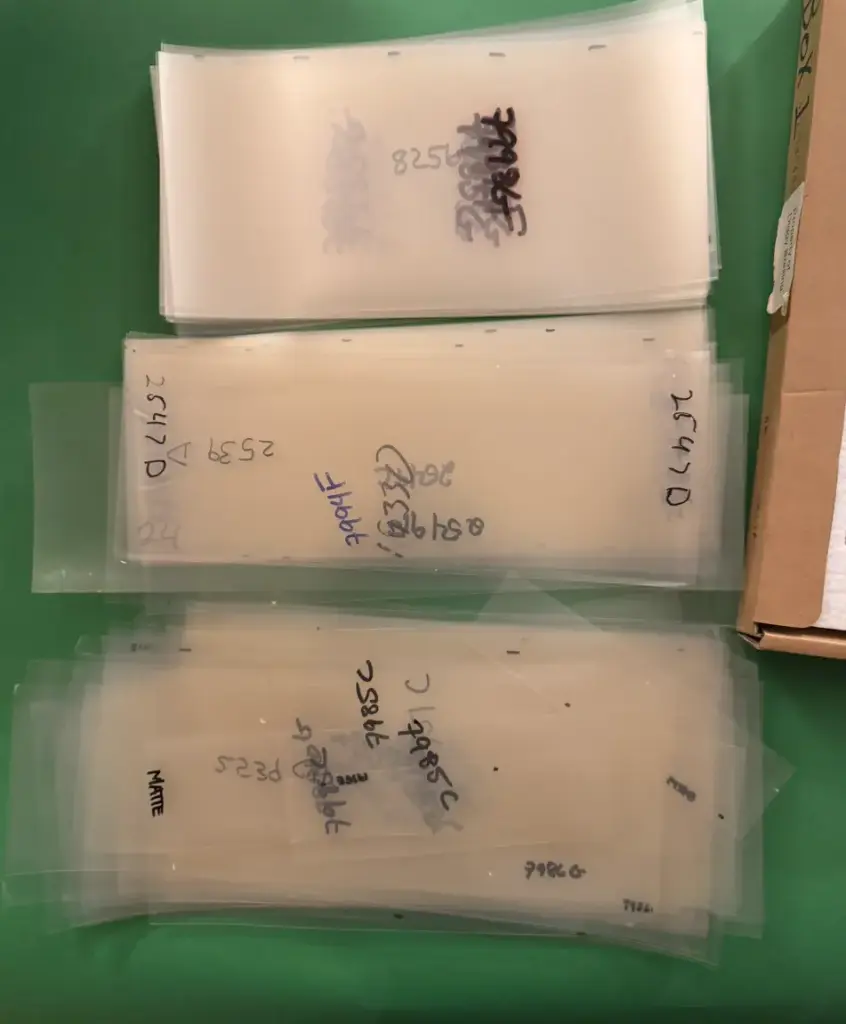

HEA2000k Matte Optical Film - 11 x 5 in

HEA2000k matte optical film in an 11 x 5 inch format for display optical development. Discuss the required surface finish, handling and application with our team.

OPA / SYLGARD™ 527 Silicone Gel for Optical Bonding Applications

OPA / Momentive SN3001 / Optical Bonding Silicone / 1:1 Mix

PN: OPA-4001-00

IRF / Hot mirror, 45° incidence, 12.5 mm diameter / 12.5 mm diameter / 45° incidence

PN: IRF-03025-00

Visible-transmitting, infrared-reflecting mirror for 45° incidence. Diameter 12.5 mm; thickness 1.10 ±0.20 mm. Average transmission exceeds 85% over 400–690 nm and average reflectance exceeds 95% over 750–1125 nm. No NVIS qualification is implied.

Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.
