SQR-4 Square Display — High Bright Standard Module

SQR-4 Square Display — High Bright Standard Module

(0 review)

720 × 720 square LCD with a 99.36 × 99.36 mm active area. A High Bright reference module for custom instrument, avionics and simulation display development.

FPD part number: SQR-3004-00

View specifications and documentation ↓

Customize Your Display ↓

  • Display Aspect Ratio
  • Display Resolution
  • Backlight Brightness

Save products to your Interest List to share your requirements, or contact us about this product.

Contact Us
Add this product to INTEREST LIST
Price
Terms and Conditions

Internal Reference: SQR-3004-00

Specifications

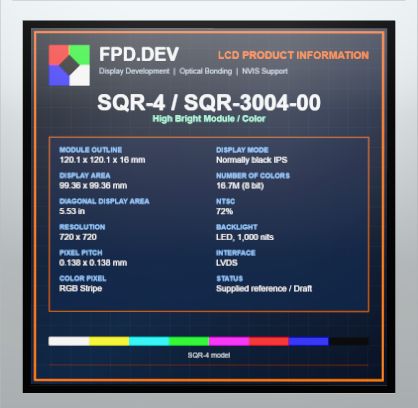

SQR-4 Square Display — High Bright Module

FPD referenceSQR-3004-00
Display constructionNormally black IPS LCD
Resolution (pixels)720 × 720
Active area, W × H (mm)99.36 × 99.36
Reference outline, W × H × D (mm)120.1 × 120.1 × 16
Reference luminance1,000 cd/m²; measurement conditions and final assembly output to confirm
Display interfaceSingle-channel LVDS
Backlight / driverEdge-lit LED with PWM driver
Front surfaceOptically bonded AR cover glass
Color depth16.7 million colors (8-bit RGB)
Reference chassisStandard finish (suffix -00)
Electrical / environmental limitsConfirm for the selected assembly and application

Integration notes

Reference values support initial selection. Confirm the released drawing, connector pinout, power, dimming, thermal design and optical measurement conditions before design approval. Share the applicable NVIS type/class and environmental requirements when discussing your configuration.

Documentation

Discuss this display

Customize Your Display

Start with SQR-4 in its standard High Bright configuration. Explore options, review your configuration and save a draft component list for discussion.

The interactive model illustrates configuration choices. SQR-3, SQR-5, SQR-6 and SQR-7 use representative SQR-4 geometry; selected-family data follows your choice. Final dimensions, construction and performance require engineering review. SQR-7 driver, glass and bonding scope require confirmation.

Open the designer in a separate tab ↗

Specifications

Display Aspect Ratio 1:1 Square
