720 × 720 square LCD with a 99.36 × 99.36 mm active area. A High Bright reference module for custom instrument, avionics and simulation display development.
FPD part number: SQR-3004-00
Pricing is available by quotation. Save products to your Interest List to request a quote for several items, or contact us about this product.
Referencia interna:
SQR-3004-00

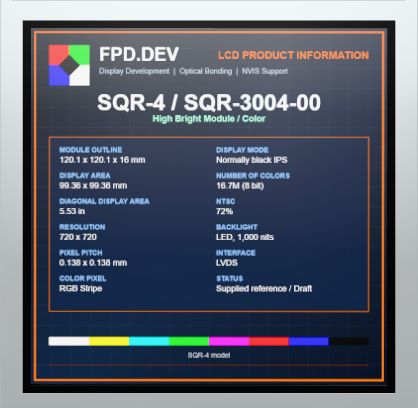

SQR-4 Square Display — High Bright Module
| FPD reference | SQR-3004-00 |
|---|---|
| Display construction | Normally black IPS LCD |
| Resolution (pixels) | 720 × 720 |
| Active area, W × H (mm) | 99.36 × 99.36 |
| Reference outline, W × H × D (mm) | 120.1 × 120.1 × 16 |
| Reference luminance | 1,000 cd/m²; measurement conditions and final assembly output to confirm |
| Display interface | Single-channel LVDS |
| Backlight / driver | Edge-lit LED with PWM driver |
| Front surface | Optically bonded AR cover glass |
| Color depth | 16.7 million colors (8-bit RGB) |
| Reference chassis | Standard finish (suffix -00) |
| Electrical / environmental limits | Confirm for the selected assembly and application |
Reference values support initial selection. Confirm the released drawing, connector pinout, power, dimming, thermal design and optical measurement conditions before design approval. Share the applicable NVIS type/class and environmental requirements when discussing your configuration.
Start with SQR-4 in its standard High Bright configuration. Explore options, review your configuration and save a draft component list for discussion.
The interactive model illustrates configuration choices. SQR-3, SQR-5, SQR-6 and SQR-7 use representative SQR-4 geometry; selected-family data follows your choice. Final dimensions, construction and performance require engineering review. SQR-7 driver, glass and bonding scope require confirmation.
