Internal Reference:
TCH-030011-00
USB infrared touch assembly with a black frame and cover glass for 12.1-inch display integration.
| FPD / Colabmo part number | TCH-030011-00 |
|---|---|
| Manufacturer model | GT-IR-TE12.1-1 |
| Nominal format | 12.1 inch · 4:3 |
| Interface | USB 2.0 |
| Touch | Infrared · up to 10 points |
| Construction | Black frame with tempered cover glass |
| Overall dimensions | 281.9 × 220.7 × 6.8 mm |
| Viewing opening | 247.4 × 186.2 mm |
| Reference active area | 246.4 × 185.2 mm |

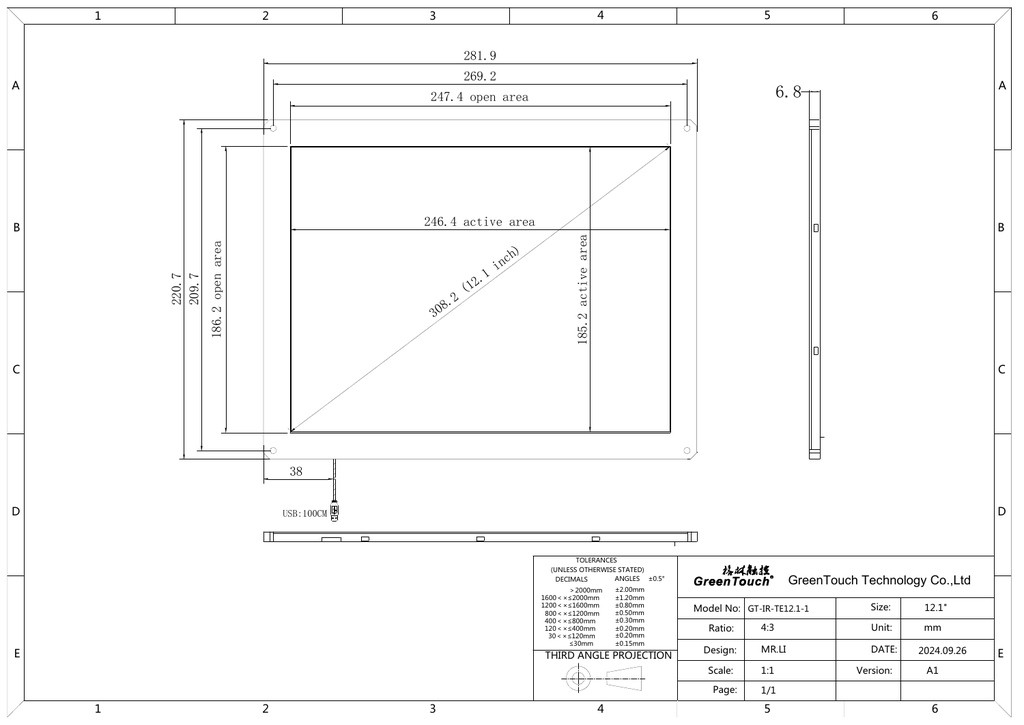

| Drawing basis | GreenTouch A1 · 2024-09-26 |
Check the drawing, mounting, controller compatibility and optical stack for your assembly. Standard rectangular panels are separate from our custom SQR frame concepts.
