Backlight Module
![[LRA-03010-00] LRA / Cut-to-Fit LED Kit / 620 ×4 ×2 mm / Dual Strip](/web/image/product.product/10099/image_1024/%5BLRA-03010-00%5D%20LRA%20-%20Cut-to-Fit%20LED%20Kit%20-%20620%20%C3%974%20%C3%972%20mm%20-%20Dual%20Strip?unique=e7b4ecc)
LRA / Cut-to-Fit LED Kit / 620 ×4 ×2 mm / Dual Strip
PN: LRA-03010-00
Kit sheet specifies two 620 ×4 ×2 mm strips with 99 LEDs per strip and a two-strip driver. Trim only at designated three-LED increments. Input is inconsistent within the sheet: 10–30 V in the specification and 9–30 V in the pin legend. Confirm the current driver rating and matched strip loading.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
![[LRA-03009-00] LRA / Cut-to-Fit LED Kit / 540 ×4 ×2 mm / Dual Strip](/web/image/product.product/10098/image_1024/%5BLRA-03009-00%5D%20LRA%20-%20Cut-to-Fit%20LED%20Kit%20-%20540%20%C3%974%20%C3%972%20mm%20-%20Dual%20Strip?unique=e7b4ecc)
LRA / Cut-to-Fit LED Kit / 540 ×4 ×2 mm / Dual Strip
PN: LRA-03009-00
Legacy sheet specifies two 540 ×4 ×2 mm strips with 96 LEDs per strip, driver and harness; designated three-LED cutting increments. Listed driver input 9–30 V DC. Confirm current SKU cross-reference and specifications before purchase.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
![[LRA-03008-00] LRA / Cut-to-Fit LED Kit / 336 ×2 ×2 mm / Single Strip](/web/image/product.product/10097/image_1024/%5BLRA-03008-00%5D%20LRA%20-%20Cut-to-Fit%20LED%20Kit%20-%20336%20%C3%972%20%C3%972%20mm%20-%20Single%20Strip?unique=e7b4ecc)
LRA / Cut-to-Fit LED Kit / 336 ×2 ×2 mm / Single Strip
PN: LRA-03008-00
Kit includes one 336 ×2 ×2 mm strip, driver and harness. Listed 57 LEDs; trim only at designated three-LED increments. Driver input 9–30 V DC. Check electrical and optical fit; the diagonal range is a selection guide. No standalone PDF retrieved.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
![[LRA-03007-00] LRA / Custom LCD LED Modification Kit / Family Reference](/web/image/product.product/10096/image_1024/%5BLRA-03007-00%5D%20LRA%20-%20Custom%20LCD%20LED%20Modification%20Kit%20-%20Family%20Reference?unique=e7b4ecc)
LRA / Custom LCD LED Modification Kit / Family Reference
PN: LRA-03007-00
Display-specific modification-kit family with a custom LED rail, LED driver, cables and installation materials as required. Exact kit PN and controlled drawings depend on the selected LCD. High-bright and dual-mode NVIS configurations require a display-specific design; no kit qualification is assigned here.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
![[LRA-03006-00] LRA / White LED Rail / 321 ×5.1 ×2 mm / 6500 K](/web/image/product.product/10095/image_1024/%5BLRA-03006-00%5D%20LRA%20-%20White%20LED%20Rail%20-%20321%20%C3%975.1%20%C3%972%20mm%20-%206500%20K?unique=e7b4ecc)
LRA / White LED Rail / 321 ×5.1 ×2 mm / 6500 K
PN: LRA-03006-00
Legacy standard rail: 321 ×5.1 ×2 mm; 6.9 mm LED spacing; 6500 K; listed input 1500 mA and 9.6 V. Confirm current availability and exact mechanical/driver configuration.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
![[LRA-03005-00] LRA / White LED Rail / 258 ×5.1 ×2 mm / 6500 K](/web/image/product.product/10094/image_1024/%5BLRA-03005-00%5D%20LRA%20-%20White%20LED%20Rail%20-%20258%20%C3%975.1%20%C3%972%20mm%20-%206500%20K?unique=e7b4ecc)
LRA / White LED Rail / 258 ×5.1 ×2 mm / 6500 K
PN: LRA-03005-00
Legacy standard rail: 258 ×5.1 ×2 mm; 6.9 mm LED spacing; 6500 K; listed input 1200 mA and 9.6 V. Confirm current availability and exact mechanical/driver configuration.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
![[LRA-03004-00] LRA / White LED Rail / 220 ×5.1 ×2 mm / 6500 K](/web/image/product.product/10093/image_1024/%5BLRA-03004-00%5D%20LRA%20-%20White%20LED%20Rail%20-%20220%20%C3%975.1%20%C3%972%20mm%20-%206500%20K?unique=e7b4ecc)
LRA / White LED Rail / 220 ×5.1 ×2 mm / 6500 K
PN: LRA-03004-00
Legacy standard rail: 220 ×5.1 ×2 mm; 6.5 mm LED spacing; 6500 K; listed input 1100 mA and 9.6 V. Drawing associates it with a matching light guide. Confirm current availability and drive limits.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
![[LRA-03003-00] LRA / Custom Dual-Mode Day and NVIS Night LED Rail / Design Reference](/web/image/product.product/10092/image_1024/%5BLRA-03003-00%5D%20LRA%20-%20Custom%20Dual-Mode%20Day%20and%20NVIS%20Night%20LED%20Rail%20-%20Design%20Reference?unique=ffd6a2f)
LRA / Custom Dual-Mode Day and NVIS Night LED Rail / Design Reference
PN: LRA-03003-00

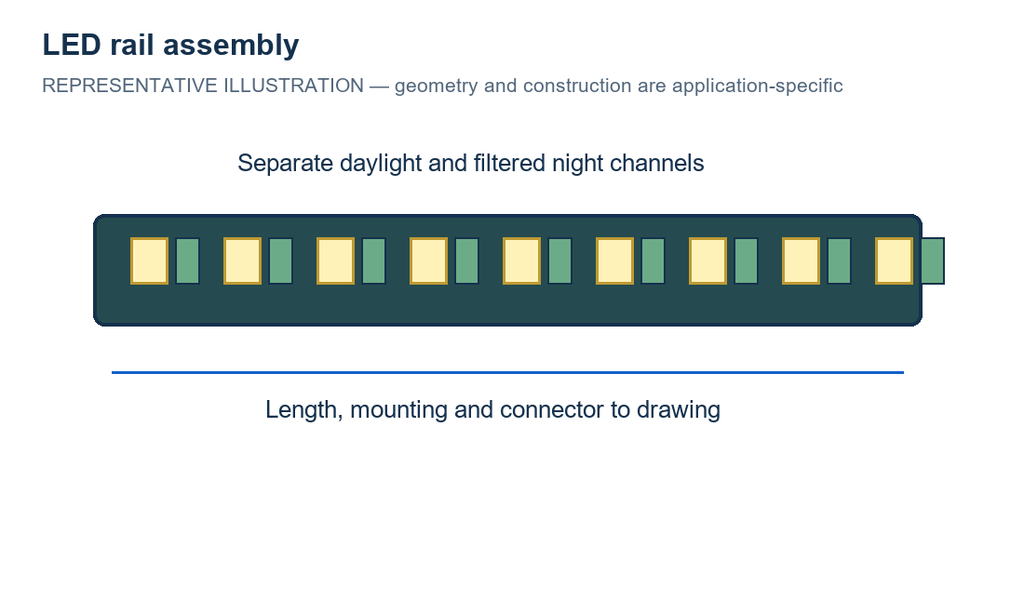

Custom rail with separately driven day and filtered night channels. Define optical isolation, drive leakage, source/filter geometry and thermal design. Check phosphor fluorescence from unpowered day LEDs. No completed or qualified assembly is represented.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
![[LRA-03002-00] LRA / Custom Filtered NVIS Night LED Rail / Design Reference](/web/image/product.product/10091/image_1024/%5BLRA-03002-00%5D%20LRA%20-%20Custom%20Filtered%20NVIS%20Night%20LED%20Rail%20-%20Design%20Reference?unique=e7b4ecc)
LRA / Custom Filtered NVIS Night LED Rail / Design Reference
PN: LRA-03002-00
Custom night-channel rail design reference using source-matched infrared filters in chip, strip, cap or rail form. Specify NVIS class and output color separately. Define full light sealing, source spectrum, filter thermal clearance and assembly radiance test. No released or qualified design is represented.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
![[LRA-03001-00] LRA / Custom White Daylight LED Rail / Design Reference](/web/image/product.product/10090/image_1024/%5BLRA-03001-00%5D%20LRA%20-%20Custom%20White%20Daylight%20LED%20Rail%20-%20Design%20Reference?unique=e7b4ecc)
LRA / Custom White Daylight LED Rail / Design Reference
PN: LRA-03001-00
Custom white-LED rail design reference. Define target LCD, length/width/height, emitting height, LED selection and pitch, current/string topology, connector/pinout, thermal interface, color bin and dimming. No completed rail, drawing or measured performance exists for this reference.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
Development reference — further design or fit verification required. No target LCD has been selected. Confirm mechanical, electrical, optical and thermal compatibility before release.
