![[BFM-3006-00] BFM / 3M / Vikuiti DBEF-D400 / 17 ×17 in / 0°](/web/image/product.product/8457/image_1024/%5BBFM-3006-00%5D%20BFM%20-%203M%20-%20Vikuiti%20DBEF-D400%20-%2017%20%C3%9717%20in%20-%200%C2%B0?unique=7fdc45b)
BFM / 3M / Vikuiti DBEF-D400 / 17 ×17 in / 0°
PN: BFM-3006-00
Diffuse multilayer film recycles polarization in an LCD backlight. Nominal thickness 400 µm; published haze 80% ±4%. Align its transmission axis with the LCD rear polarizer.
Backlight Films
![[BFM-3009-00] BFM / 3M / Vikuiti BEF II 90/50 / 14 ×18 in / vertical](/web/image/product.product/8437/image_1024/%5BBFM-3009-00%5D%20BFM%20-%203M%20-%20Vikuiti%20BEF%20II%2090-50%20-%2014%20%C3%9718%20in%20-%20vertical?unique=9951ff8)
BFM / 3M / Vikuiti BEF II 90/50 / 14 ×18 in / vertical
PN: BFM-3009-00
Prismatic film redirects off-axis backlight toward the viewing direction. Prism apex 90° and pitch 50 µm. Published thickness differs by document revision; confirm the supplied construction.
![[BFM-3008-00] BFM / 3M / Vikuiti BEF II 90/50 / 14 ×18 in / horizontal](/web/image/product.product/8436/image_1024/%5BBFM-3008-00%5D%20BFM%20-%203M%20-%20Vikuiti%20BEF%20II%2090-50%20-%2014%20%C3%9718%20in%20-%20horizontal?unique=9951ff8)
BFM / 3M / Vikuiti BEF II 90/50 / 14 ×18 in / horizontal
PN: BFM-3008-00
Prismatic film redirects off-axis backlight toward the viewing direction. Prism apex 90° and pitch 50 µm. Published thickness differs by document revision; confirm the supplied construction.
![[BFM-3007-00] BFM / 3M / Vikuiti DBEF-D400 / 17 ×17 in / 45°](/web/image/product.product/8435/image_1024/%5BBFM-3007-00%5D%20BFM%20-%203M%20-%20Vikuiti%20DBEF-D400%20-%2017%20%C3%9717%20in%20-%2045%C2%B0?unique=7fdc45b)
BFM / 3M / Vikuiti DBEF-D400 / 17 ×17 in / 45°
PN: BFM-3007-00
Diffuse multilayer film recycles polarization in an LCD backlight. Nominal thickness 400 µm; published haze 80% ±4%. Align its transmission axis with the LCD rear polarizer.
![[BFM-3005-00] BFM / 3M / Vikuiti DBEF-E / 17 ×17 in / 0°](/web/image/product.product/8434/image_1024/%5BBFM-3005-00%5D%20BFM%20-%203M%20-%20Vikuiti%20DBEF-E%20-%2017%20%C3%9717%20in%20-%200%C2%B0?unique=7fdc45b)
BFM / 3M / Vikuiti DBEF-E / 17 ×17 in / 0°
PN: BFM-3005-00
Embossed multilayer reflective polarizer for LCD backlights. Select transmission-axis orientation and confirm the exact supplied thickness.
![[BFM-3004-00] BFM / 3M / Vikuiti DBEF-E / 17 ×17 in / 45°](/web/image/product.product/8433/image_1024/%5BBFM-3004-00%5D%20BFM%20-%203M%20-%20Vikuiti%20DBEF-E%20-%2017%20%C3%9717%20in%20-%2045%C2%B0?unique=7fdc45b)
BFM / 3M / Vikuiti DBEF-E / 17 ×17 in / 45°
PN: BFM-3004-00
Embossed multilayer reflective polarizer for LCD backlights. Select transmission-axis orientation and confirm the exact supplied thickness.
![[BFM-3003-00] BFM / 3M / Vikuiti BEF III-M / 14 ×14 in](/web/image/product.product/8432/image_1024/%5BBFM-3003-00%5D%20BFM%20-%203M%20-%20Vikuiti%20BEF%20III-M%20-%2014%20%C3%9714%20in?unique=9951ff8)
BFM / 3M / Vikuiti BEF III-M / 14 ×14 in
PN: BFM-3003-00
Matte-backed prismatic film with randomized prisms, 90° apex and nominal 50 µm pitch. Published applied thickness 160 µm without liners.
![[BFM-3001-00] BFM / 3M / Vikuiti BEF III-T 5T / 14 ×14 in](/web/image/product.product/8430/image_1024/%5BBFM-3001-00%5D%20BFM%20-%203M%20-%20Vikuiti%20BEF%20III-T%205T%20-%2014%20%C3%9714%20in?unique=9951ff8)
BFM / 3M / Vikuiti BEF III-T 5T / 14 ×14 in
PN: BFM-3001-00
Clear-backed prismatic film with randomized prisms, 90° apex and nominal 50 µm pitch. Published applied thickness 155 µm without liners.
![[OFM-03010-00] OFM / 3M / RPM / TF110-45° / 12 ×12 in / 45° / adhesive](/web/image/product.product/9095/image_1024/%5BOFM-03010-00%5D%20OFM%20-%203M%20-%20RPM%20-%20TF110-45%C2%B0%20-%2012%20%C3%9712%20in%20-%2045%C2%B0%20-%20adhesive?unique=74a7871)
OFM / 3M / RPM / TF110-45° / 12 ×12 in / 45° / adhesive
PN: OFM-03010-00
Reflective polarizing mirror film with adhesive for a display behind a partial mirror. Exact optical limits, adhesive construction and transmission-axis datum require confirmation.
![[BFM-03013-00] BFM / 3M / Vikuiti DBEF-D400 / 14 ×14 in / 0°](/web/image/product.product/9096/image_1024/%5BBFM-03013-00%5D%20BFM%20-%203M%20-%20Vikuiti%20DBEF-D400%20-%2014%20%C3%9714%20in%20-%200%C2%B0?unique=7fdc45b)
BFM / 3M / Vikuiti DBEF-D400 / 14 ×14 in / 0°
PN: BFM-03013-00
Diffuse multilayer film recycles polarization in an LCD backlight. Nominal thickness 400 µm; published haze 80% ±4%. Align its transmission axis with the LCD rear polarizer.
![[BFM-3002-00] BFM / 3M / Vikuiti DBEF-D400 / 14 ×14 in / 45°](/web/image/product.product/8431/image_1024/%5BBFM-3002-00%5D%20BFM%20-%203M%20-%20Vikuiti%20DBEF-D400%20-%2014%20%C3%9714%20in%20-%2045%C2%B0?unique=74a7871)

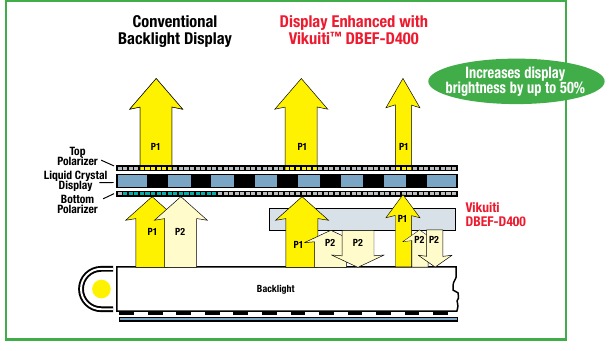

BFM / 3M / Vikuiti DBEF-D400 / 14 ×14 in / 45°
PN: BFM-3002-00
Diffuse multilayer film recycles polarization in an LCD backlight. Nominal thickness 400 µm; published haze 80% ±4%. Align its transmission axis with the LCD rear polarizer.
![[BFM-03042-00] BFM / Toray / Lumirror white display-reflector grades / Material Reference](/web/image/product.product/10059/image_1024/%5BBFM-03042-00%5D%20BFM%20-%20Toray%20-%20Lumirror%20white%20display-reflector%20grades%20-%20Material%20Reference?unique=e7b4ecc)
BFM / Toray / Lumirror white display-reflector grades / Material Reference
PN: BFM-03042-00
White polyester reflector family for diffuse backlight recycling. Select exact grade, gauge and reflectance spectrum.
![[BFM-03041-00] BFM / Keiwa / OPASUKI family / Material Reference](/web/image/product.product/10058/image_1024/%5BBFM-03041-00%5D%20BFM%20-%20Keiwa%20-%20OPASUKI%20family%20-%20Material%20Reference?unique=e7b4ecc)
BFM / Keiwa / OPASUKI family / Material Reference
PN: BFM-03041-00
Composite optical diffusion-plate family for direct-lit backlights. Select a construction matching the light-source spacing and desired angular distribution.
![[BFM-03040-00] BFM / Keiwa / OPALUS family / Material Reference](/web/image/product.product/10057/image_1024/%5BBFM-03040-00%5D%20BFM%20-%20Keiwa%20-%20OPALUS%20family%20-%20Material%20Reference?unique=e7b4ecc)
BFM / Keiwa / OPALUS family / Material Reference
PN: BFM-03040-00
Optical diffusion-film family for LCD backlight uniformity. Exact grade, thickness, haze, transmission and angular profile remain to be selected.
![[BFM-03039-00] BFM / Luminit / DTF for displays / Material Reference](/web/image/product.product/10056/image_1024/%5BBFM-03039-00%5D%20BFM%20-%20Luminit%20-%20DTF%20for%20displays%20-%20Material%20Reference?unique=e7b4ecc)
BFM / Luminit / DTF for displays / Material Reference
PN: BFM-03039-00
Prismatic direction-turning film with a nominal 20° beam turn. The structured side faces the image source. Select construction and verify image quality.
![[BFM-03038-00] BFM / Luminit / LSD circular / elliptical / Material Reference](/web/image/product.product/10055/image_1024/%5BBFM-03038-00%5D%20BFM%20-%20Luminit%20-%20LSD%20circular%20-%20elliptical%20-%20Material%20Reference?unique=e7b4ecc)
BFM / Luminit / LSD circular / elliptical / Material Reference
PN: BFM-03038-00
Surface-structured diffuser family for circular or elliptical angular spreading. Select angular distribution, substrate, gauge and format before ordering.
![[BFM-03037-00] BFM / Luminit / RTD / Material Reference](/web/image/product.product/10054/image_1024/%5BBFM-03037-00%5D%20BFM%20-%20Luminit%20-%20RTD%20-%20Material%20Reference?unique=e7b4ecc)
BFM / Luminit / RTD / Material Reference
PN: BFM-03037-00
Prismatic film with rounded tips on a nominal 254 µm substrate. Optional diffusion construction and total thickness require confirmation.
![[BFM-03036-00] BFM / Luminit / DBF / Material Reference](/web/image/product.product/10053/image_1024/%5BBFM-03036-00%5D%20BFM%20-%20Luminit%20-%20DBF%20-%20Material%20Reference?unique=e7b4ecc)
BFM / Luminit / DBF / Material Reference
PN: BFM-03036-00
Prismatic brightness film on a nominal 250 µm polycarbonate substrate. Gloss or integrated-diffuser construction must be selected; total thickness requires confirmation.
![[BFM-03035-00] BFM / 3M / UDF family / Material Reference](/web/image/product.product/10052/image_1024/%5BBFM-03035-00%5D%20BFM%20-%203M%20-%20UDF%20family%20-%20Material%20Reference?unique=e7b4ecc)
BFM / 3M / UDF family / Material Reference
PN: BFM-03035-00
Non-beaded optical diffuser for backlight homogenization. Select thickness, transmission, haze and angular distribution for the application.
![[BFM-03034-00] BFM / 3M / EDR-95 / Material Reference](/web/image/product.product/10051/image_1024/%5BBFM-03034-00%5D%20BFM%20-%203M%20-%20EDR-95%20-%20Material%20Reference?unique=e7b4ecc)

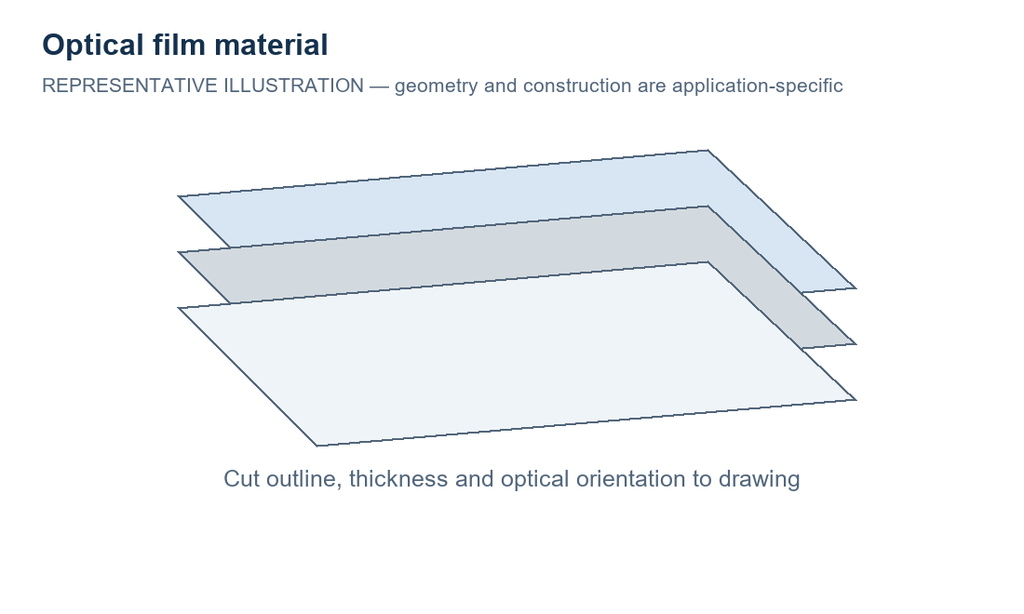

BFM / 3M / EDR-95 / Material Reference
PN: BFM-03034-00
Diffuse multilayer rear reflector for backlight light recycling. Exact thickness and wavelength-resolved reflectance require confirmation.
