IRF / Custom IR-absorbing polymer filter

IRF / Custom IR-absorbing polymer filter

(0 review)

Custom infrared-absorbing polymer in film, sheet or formed geometry. Specify actual thickness, wavelength-resolved blocking, temperature and source compatibility.

Application development required. Final configuration is established through a reviewed drawing and specification.

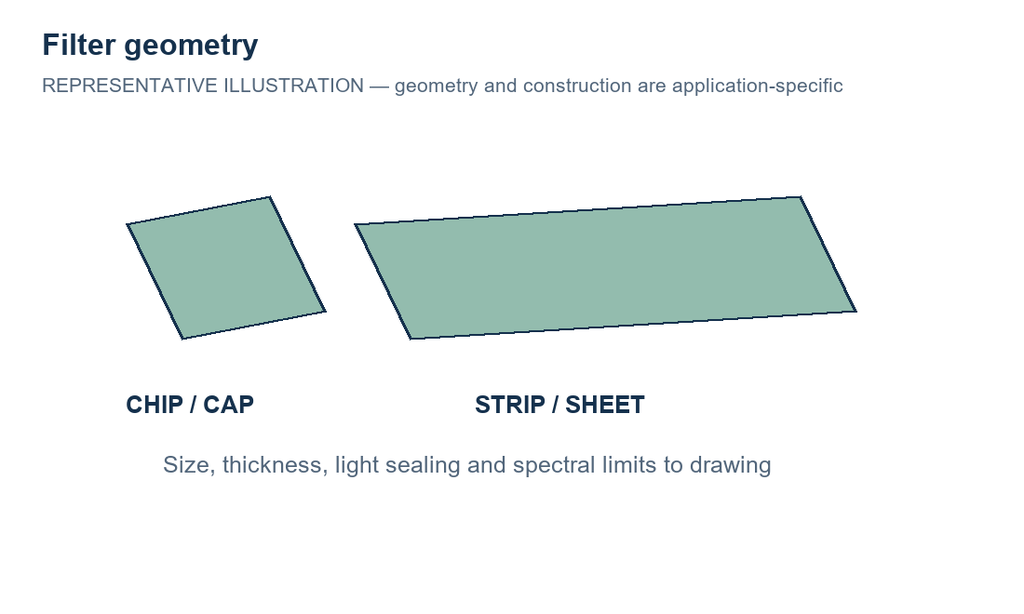

Representative illustration; configuration and dimensions are defined by the application drawing.

Pricing is available by quotation. Save products to your Interest List to request a quote for several items, or contact us about this product.

Contact Us
Add this product to INTEREST LIST
Price
Terms and Conditions

Internal Reference: IRF-03012-00

Application and configuration

Infrared-control materials can be integrated near LEDs as chips, strips, caps or formed rails, or placed elsewhere in the optical path as the design permits. The material, LED and backlight geometry are selected together for the required visible output and infrared suppression.

Define the optical specification

Specify visible passband and minimum transmission, cutoff wavelength and its definition, transition width, blocked wavelength range and maximum transmission or optical density. Include source spectrum, temperature, angle-of-incidence range and polarization. Absorbing materials change response with thickness; interference coatings change response with incidence angle.

Custom chip, strip or substrate drawing

Define outline and tolerances, thickness, clear aperture, edge finish, holes or mounting features, coating face and orientation. Include bonding or retention method, LED clearance, light sealing, thermal limits and inspection requirements. For caps and formed rails, define the complete LED envelope and paths around the filter.

NVIS integration

Class A or B requirements and output-color designations are separate inputs. Verify spectral radiance and color using the selected LEDs, drive levels, filters and complete backlight or display. These material references do not represent a released or qualified NVIS assembly.

From reference to a controlled part

Start with the application and available space. Develop a drawing with custom dimensions and performance specifications, review the proposed configuration, and evaluate samples where needed. Record the approved drawing revision and acceptance criteria for the supplied part. Availability and final configuration are confirmed during quotation.

Application data

Configuration-specific spectral, mechanical and electrical data is reviewed with the proposed drawing. Use Contact Us or add this reference to the Interest List to identify the application and requested format.
