Materials & Optical Bonding
![[HDW-03202-XX] HDW / SCW / M5 x 12mm 18-8 / Flathead / Socket Cap / Stainless / Self Tapping](/web/image/product.template/11932/image_1024/%5BHDW-03202-XX%5D%20HDW%20-%20SCW%20-%20M5%20x%2012mm%2018-8%20-%20Flathead%20-%20Socket%20Cap%20-%20Stainless%20-%20Self%20Tapping?unique=8c8e1a3)
![[HDW-03209-XX] HDW / SCW / M2.5 x 8mm / Flathead / Phillips / Self Tapping / BLK / QTY 100](/web/image/product.template/11939/image_1024/%5BHDW-03209-XX%5D%20HDW%20-%20SCW%20-%20M2.5%20x%208mm%20-%20Flathead%20-%20Phillips%20-%20Self%20Tapping%20-%20BLK%20-%20QTY%20100?unique=8c8e1a3)
HDW / SCW / M2.5 x 8mm / Flathead / Phillips / Self Tapping / BLK / QTY 100
PN: HDW-03209-XX
uxcell M2.5 x 8mm Flat Head Phillips Self Tapping Screws Fasteners Black 100pcs
![[IRF-03021-00] IRF / Green-output absorbing filter glass, 2.00 mm](/web/image/product.product/10080/image_1024/%5BIRF-03021-00%5D%20IRF%20-%20Green-output%20absorbing%20filter%20glass%2C%202.00%20mm?unique=e7b4ecc)
IRF / Green-output absorbing filter glass, 2.00 mm
PN: IRF-03021-00
Absorbing glass for NVIS Green A output development. Nominal thickness 2.00 mm. Published luminance transmission ranges from 17.8% to 18.7% across three specified white LEDs.
Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.
Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.
![[IRF-03020-00] IRF / White-output absorbing filter glass, 0.50 mm](/web/image/product.product/10079/image_1024/%5BIRF-03020-00%5D%20IRF%20-%20White-output%20absorbing%20filter%20glass%2C%200.50%20mm?unique=e7b4ecc)
IRF / White-output absorbing filter glass, 0.50 mm
PN: IRF-03020-00
Thin absorbing glass for white-output NVIS development. Nominal thickness 0.50 mm. Published luminance transmission ranges from 36.5% to 38.5% across four specified LED sources.
Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.
Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.

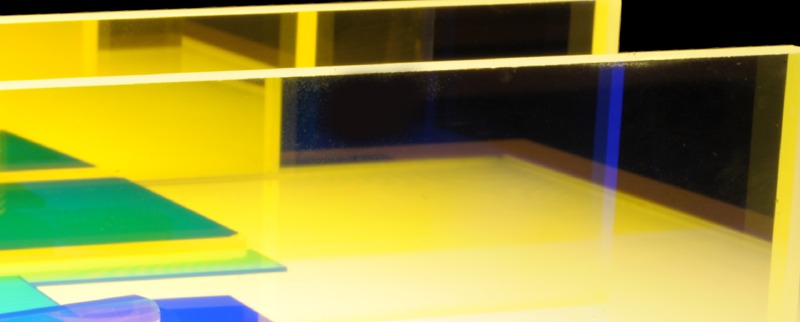

![[IRF-03019-00] IRF / Heat-absorbing filter glass, material 05](/web/image/product.product/10078/image_1024/%5BIRF-03019-00%5D%20IRF%20-%20Heat-absorbing%20filter%20glass%2C%20material%2005?unique=e7b4ecc)
IRF / Heat-absorbing filter glass, material 05
PN: IRF-03019-00
Heat-absorbing glass with data referenced to 2 mm thickness. Internal transmission limits are 0.14 at 800 nm and 0.03 at 900 nm. Absorbed optical power heats the component.
Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.
Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.
![[IRF-03018-00] IRF / Near-IR absorbing glass, material 04](/web/image/product.product/10077/image_1024/%5BIRF-03018-00%5D%20IRF%20-%20Near-IR%20absorbing%20glass%2C%20material%2004?unique=e7b4ecc)
IRF / Near-IR absorbing glass, material 04
PN: IRF-03018-00
Near-infrared absorbing glass for spectral attenuation or hybrid filter assemblies. Reference data uses 1 mm thickness. No standalone NVIS compliance is established.
Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.
Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.
![[IRF-03017-00] IRF / Green-output absorbing filter glass, material 03](/web/image/product.product/10076/image_1024/%5BIRF-03017-00%5D%20IRF%20-%20Green-output%20absorbing%20filter%20glass%2C%20material%2003?unique=e7b4ecc)
IRF / Green-output absorbing filter glass, material 03
PN: IRF-03017-00
Absorbing glass for NVIS Green A output development, with data referenced to 3 mm thickness. Verify transmission at the actual supplied gauge.
Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.
Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.
![[IRF-03016-00] IRF / Green-output absorbing filter glass, material 02](/web/image/product.product/10075/image_1024/%5BIRF-03016-00%5D%20IRF%20-%20Green-output%20absorbing%20filter%20glass%2C%20material%2002?unique=e7b4ecc)
IRF / Green-output absorbing filter glass, material 02
PN: IRF-03016-00
Absorbing glass for NVIS Green A output development, with data referenced to 2 mm thickness. Output color does not establish goggle Class A compliance.
Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.
Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.
![[IRF-03015-00] IRF / White-output absorbing filter glass, material 01](/web/image/product.product/10074/image_1024/%5BIRF-03015-00%5D%20IRF%20-%20White-output%20absorbing%20filter%20glass%2C%20material%2001?unique=e7b4ecc)
IRF / White-output absorbing filter glass, material 01
PN: IRF-03015-00
Absorbing glass for white-output NVIS development. At 1 mm reference thickness, internal transmission is at least 0.83 at 500 nm and at most 0.19 at 600 nm. Surface reflection is excluded.
Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.
Development reference — further application development and verification required. Define the source, geometry, spectral limits and operating conditions before release. Finished-display NVIS compliance is not established.
![[BFM-03042-00] BFM / Toray / Lumirror white display-reflector grades / Material Reference](/web/image/product.product/10059/image_1024/%5BBFM-03042-00%5D%20BFM%20-%20Toray%20-%20Lumirror%20white%20display-reflector%20grades%20-%20Material%20Reference?unique=e7b4ecc)
BFM / Toray / Lumirror white display-reflector grades / Material Reference
PN: BFM-03042-00
White polyester reflector family for diffuse backlight recycling. Select exact grade, gauge and reflectance spectrum.
![[BFM-03041-00] BFM / Keiwa / OPASUKI family / Material Reference](/web/image/product.product/10058/image_1024/%5BBFM-03041-00%5D%20BFM%20-%20Keiwa%20-%20OPASUKI%20family%20-%20Material%20Reference?unique=e7b4ecc)
BFM / Keiwa / OPASUKI family / Material Reference
PN: BFM-03041-00
Composite optical diffusion-plate family for direct-lit backlights. Select a construction matching the light-source spacing and desired angular distribution.
![[BFM-03040-00] BFM / Keiwa / OPALUS family / Material Reference](/web/image/product.product/10057/image_1024/%5BBFM-03040-00%5D%20BFM%20-%20Keiwa%20-%20OPALUS%20family%20-%20Material%20Reference?unique=e7b4ecc)
BFM / Keiwa / OPALUS family / Material Reference
PN: BFM-03040-00
Optical diffusion-film family for LCD backlight uniformity. Exact grade, thickness, haze, transmission and angular profile remain to be selected.
![[BFM-03039-00] BFM / Luminit / DTF for displays / Material Reference](/web/image/product.product/10056/image_1024/%5BBFM-03039-00%5D%20BFM%20-%20Luminit%20-%20DTF%20for%20displays%20-%20Material%20Reference?unique=e7b4ecc)
BFM / Luminit / DTF for displays / Material Reference
PN: BFM-03039-00
Prismatic direction-turning film with a nominal 20° beam turn. The structured side faces the image source. Select construction and verify image quality.
![[BFM-03038-00] BFM / Luminit / LSD circular / elliptical / Material Reference](/web/image/product.product/10055/image_1024/%5BBFM-03038-00%5D%20BFM%20-%20Luminit%20-%20LSD%20circular%20-%20elliptical%20-%20Material%20Reference?unique=e7b4ecc)
BFM / Luminit / LSD circular / elliptical / Material Reference
PN: BFM-03038-00
Surface-structured diffuser family for circular or elliptical angular spreading. Select angular distribution, substrate, gauge and format before ordering.
![[BFM-03037-00] BFM / Luminit / RTD / Material Reference](/web/image/product.product/10054/image_1024/%5BBFM-03037-00%5D%20BFM%20-%20Luminit%20-%20RTD%20-%20Material%20Reference?unique=e7b4ecc)
BFM / Luminit / RTD / Material Reference
PN: BFM-03037-00
Prismatic film with rounded tips on a nominal 254 µm substrate. Optional diffusion construction and total thickness require confirmation.
![[BFM-03036-00] BFM / Luminit / DBF / Material Reference](/web/image/product.product/10053/image_1024/%5BBFM-03036-00%5D%20BFM%20-%20Luminit%20-%20DBF%20-%20Material%20Reference?unique=e7b4ecc)
BFM / Luminit / DBF / Material Reference
PN: BFM-03036-00
Prismatic brightness film on a nominal 250 µm polycarbonate substrate. Gloss or integrated-diffuser construction must be selected; total thickness requires confirmation.
![[BFM-03035-00] BFM / 3M / UDF family / Material Reference](/web/image/product.product/10052/image_1024/%5BBFM-03035-00%5D%20BFM%20-%203M%20-%20UDF%20family%20-%20Material%20Reference?unique=e7b4ecc)
BFM / 3M / UDF family / Material Reference
PN: BFM-03035-00
Non-beaded optical diffuser for backlight homogenization. Select thickness, transmission, haze and angular distribution for the application.
![[BFM-03034-00] BFM / 3M / EDR-95 / Material Reference](/web/image/product.product/10051/image_1024/%5BBFM-03034-00%5D%20BFM%20-%203M%20-%20EDR-95%20-%20Material%20Reference?unique=e7b4ecc)
BFM / 3M / EDR-95 / Material Reference
PN: BFM-03034-00
Diffuse multilayer rear reflector for backlight light recycling. Exact thickness and wavelength-resolved reflectance require confirmation.
