![[BFM-03022-00] BFM / 3M / BEF2 T 155n / Material Reference](/web/image/product.product/10039/image_1024/%5BBFM-03022-00%5D%20BFM%20-%203M%20-%20BEF2%20T%20155n%20-%20Material%20Reference?unique=9951ff8)
BFM / 3M / BEF2 T 155n / Material Reference
PN: BFM-03022-00
Prismatic brightness film using non-halogenated acrylic on polyester. Published applied thickness approximately 150 µm. Confirm the production specification.
All products
![[BFM-03021-00] BFM / 3M / AEF-155 / Material Reference](/web/image/product.product/10038/image_1024/%5BBFM-03021-00%5D%20BFM%20-%203M%20-%20AEF-155%20-%20Material%20Reference?unique=e7b4ecc)
BFM / 3M / AEF-155 / Material Reference
PN: BFM-03021-00
Prismatic brightness film with 90° apex and 50 µm pitch. Published caliper 155 ±10 µm. This is a separate material reference from other films of the same gauge.
![[BFM-03020-00] BFM / 3M / BEF3-T-205 ASn Auto / Material Reference](/web/image/product.product/10037/image_1024/%5BBFM-03020-00%5D%20BFM%20-%203M%20-%20BEF3-T-205%20ASn%20Auto%20-%20Material%20Reference?unique=9951ff8)
BFM / 3M / BEF3-T-205 ASn Auto / Material Reference
PN: BFM-03020-00
Prismatic brightness film with 90° apex and 50 µm pitch. Published caliper 205 ±15 µm. Evaluate performance in the complete display stack.
![[BFM-03019-00] BFM / 3M / BEF3-T-155n Auto / Material Reference](/web/image/product.product/10036/image_1024/%5BBFM-03019-00%5D%20BFM%20-%203M%20-%20BEF3-T-155n%20Auto%20-%20Material%20Reference?unique=9951ff8)
BFM / 3M / BEF3-T-155n Auto / Material Reference
PN: BFM-03019-00
Prismatic brightness film with 90° apex and 50 µm pitch. Published caliper 155 ±10 µm. Evaluate performance in the complete display stack.
![[BFM-03018-00] BFM / 3M / Vikuiti DBEF-D550 / Material Reference](/web/image/product.product/10035/image_1024/%5BBFM-03018-00%5D%20BFM%20-%203M%20-%20Vikuiti%20DBEF-D550%20-%20Material%20Reference?unique=e7b4ecc)
BFM / 3M / Vikuiti DBEF-D550 / Material Reference
PN: BFM-03018-00
Reflective polarizer with diffuse support layers for backlight polarization recycling. Exact thickness and controlled optical limits require confirmation.
![[BFM-03017-00] BFM / 3M / Vikuiti DBEF II / Material Reference](/web/image/product.product/10034/image_1024/%5BBFM-03017-00%5D%20BFM%20-%203M%20-%20Vikuiti%20DBEF%20II%20-%20Material%20Reference?unique=e7b4ecc)
BFM / 3M / Vikuiti DBEF II / Material Reference
PN: BFM-03017-00
Multilayer reflective polarizer with matte surfaces. Nominal thickness 150 µm and published haze 40% ±10%. Align its transmission axis to the LCD rear polarizer.
![[BFM-03016-00] BFM / 3M / Vikuiti TBEF / Material Reference](/web/image/product.product/10033/image_1024/%5BBFM-03016-00%5D%20BFM%20-%203M%20-%20Vikuiti%20TBEF%20-%20Material%20Reference?unique=e7b4ecc)
BFM / 3M / Vikuiti TBEF / Material Reference
PN: BFM-03016-00
Thin prismatic brightness film for compact backlight stacks. Published applied thickness 62 µm without liners.
![[BFM-03015-00] BFM / 3M / Vikuiti BEF III-T 10T / Material Reference](/web/image/product.product/10032/image_1024/%5BBFM-03015-00%5D%20BFM%20-%203M%20-%20Vikuiti%20BEF%20III-T%2010T%20-%20Material%20Reference?unique=9951ff8)
BFM / 3M / Vikuiti BEF III-T 10T / Material Reference
PN: BFM-03015-00
Prismatic film on a thicker polyester support. Published applied thickness 278 µm without liners. Exact-grade optical data must be confirmed.
![[BFM-03014-00] BFM / 3M / Vikuiti BEF II 90/24 / Material Reference](/web/image/product.product/10031/image_1024/%5BBFM-03014-00%5D%20BFM%20-%203M%20-%20Vikuiti%20BEF%20II%2090-24%20-%20Material%20Reference?unique=9951ff8)
BFM / 3M / Vikuiti BEF II 90/24 / Material Reference
PN: BFM-03014-00
Prismatic film with 90° apex and 24 µm pitch. Published applied thickness 140 µm without liners. Evaluate the prism pitch against the LCD pixel structure.
![[TCH-030015-00] 15.6-inch P-Cap Touch Panel — FID-1540-081-H15](/web/image/product.product/10191/image_1024/%5BTCH-030015-00%5D%2015.6-inch%20P-Cap%20Touch%20Panel%20%E2%80%94%20FID-1540-081-H15?unique=c951cf2)
![[TCH-030014-00] 15.0-inch P-Cap Touch Panel — FID-1540-061-H15](/web/image/product.product/10190/image_1024/%5BTCH-030014-00%5D%2015.0-inch%20P-Cap%20Touch%20Panel%20%E2%80%94%20FID-1540-061-H15?unique=c951cf2)
![[TCH-030013-00] 12.1-inch P-Cap Touch Panel — FID-1540-101-H12](/web/image/product.product/10189/image_1024/%5BTCH-030013-00%5D%2012.1-inch%20P-Cap%20Touch%20Panel%20%E2%80%94%20FID-1540-101-H12?unique=c951cf2)
![[GLS-100028-00] BBAR Cover Glass — Double Side, 5.0 mm, 25 × 16 in](/web/image/product.product/10353/image_1024/%5BGLS-100028-00%5D%20BBAR%20Cover%20Glass%20%E2%80%94%20Double%20Side%2C%205.0%20mm%2C%2025%20%C3%97%2016%20in?unique=8d0e222)
BBAR Cover Glass — Double Side, 5.0 mm, 25 × 16 in
PN: GLS-100028-00
BBAR Cover Glass — Double Side, 5.0 mm, 25 × 16 in. Polished float glass; pencil/C edge; scratch/dig 60/40 or better. Four-layer broadband anti-reflection coating on both sides. Both-side catalog optical specification: average R ≤0.35% and average T ≥95% at 420–680 nm, 0–15° incidence. Coating nonuniformity ±2.5%. BBAR product family, distinct from HEA glass. Catalog specifications require confirmation for the supplied material. Contact us for current pricing, availability and application review. Available with USA manufacturing; confirm country of manufacture for your order.
![[GLS-100027-00] BBAR Cover Glass — Double Side, 4.0 mm, 25 × 16 in](/web/image/product.product/10352/image_1024/%5BGLS-100027-00%5D%20BBAR%20Cover%20Glass%20%E2%80%94%20Double%20Side%2C%204.0%20mm%2C%2025%20%C3%97%2016%20in?unique=8d0e222)
BBAR Cover Glass — Double Side, 4.0 mm, 25 × 16 in
PN: GLS-100027-00
BBAR Cover Glass — Double Side, 4.0 mm, 25 × 16 in. Polished float glass; pencil/C edge; scratch/dig 60/40 or better. Four-layer broadband anti-reflection coating on both sides. Both-side catalog optical specification: average R ≤0.35% and average T ≥95% at 420–680 nm, 0–15° incidence. Coating nonuniformity ±2.5%. BBAR product family, distinct from HEA glass. Catalog specifications require confirmation for the supplied material. Contact us for current pricing, availability and application review. Available with USA manufacturing; confirm country of manufacture for your order.
![[GLS-100026-00] BBAR Cover Glass — Double Side, 3.0 mm, 25 × 16 in](/web/image/product.product/10351/image_1024/%5BGLS-100026-00%5D%20BBAR%20Cover%20Glass%20%E2%80%94%20Double%20Side%2C%203.0%20mm%2C%2025%20%C3%97%2016%20in?unique=8d0e222)
BBAR Cover Glass — Double Side, 3.0 mm, 25 × 16 in
PN: GLS-100026-00
BBAR Cover Glass — Double Side, 3.0 mm, 25 × 16 in. Polished float glass; pencil/C edge; scratch/dig 60/40 or better. Four-layer broadband anti-reflection coating on both sides. Both-side catalog optical specification: average R ≤0.35% and average T ≥95% at 420–680 nm, 0–15° incidence. Coating nonuniformity ±2.5%. BBAR product family, distinct from HEA glass. Catalog specifications require confirmation for the supplied material. Contact us for current pricing, availability and application review. Available with USA manufacturing; confirm country of manufacture for your order.
![[GLS-100025-00] BBAR Cover Glass — Double Side, 2.5 mm, 25 × 16 in](/web/image/product.product/10350/image_1024/%5BGLS-100025-00%5D%20BBAR%20Cover%20Glass%20%E2%80%94%20Double%20Side%2C%202.5%20mm%2C%2025%20%C3%97%2016%20in?unique=8d0e222)

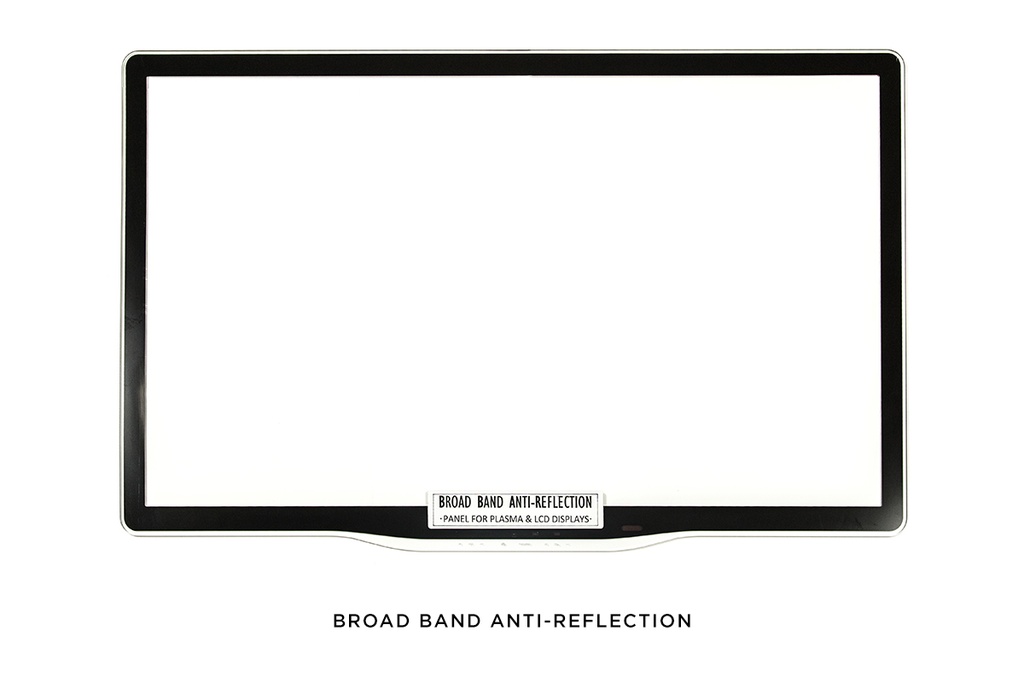

BBAR Cover Glass — Double Side, 2.5 mm, 25 × 16 in
PN: GLS-100025-00
BBAR Cover Glass — Double Side, 2.5 mm, 25 × 16 in. Polished float glass; pencil/C edge; scratch/dig 60/40 or better. Four-layer broadband anti-reflection coating on both sides. Both-side catalog optical specification: average R ≤0.35% and average T ≥95% at 420–680 nm, 0–15° incidence. Coating nonuniformity ±2.5%. BBAR product family, distinct from HEA glass. Catalog specifications require confirmation for the supplied material. Contact us for current pricing, availability and application review. Available with USA manufacturing; confirm country of manufacture for your order.
![[GLS-100024-00] BBAR Cover Glass — Double Side, 2.0 mm, 25 × 16 in](/web/image/product.product/10349/image_1024/%5BGLS-100024-00%5D%20BBAR%20Cover%20Glass%20%E2%80%94%20Double%20Side%2C%202.0%20mm%2C%2025%20%C3%97%2016%20in?unique=8d0e222)
BBAR Cover Glass — Double Side, 2.0 mm, 25 × 16 in
PN: GLS-100024-00
BBAR Cover Glass — Double Side, 2.0 mm, 25 × 16 in. Polished float glass; pencil/C edge; scratch/dig 60/40 or better. Four-layer broadband anti-reflection coating on both sides. Both-side catalog optical specification: average R ≤0.35% and average T ≥95% at 420–680 nm, 0–15° incidence. Coating nonuniformity ±2.5%. BBAR product family, distinct from HEA glass. Catalog specifications require confirmation for the supplied material. Contact us for current pricing, availability and application review. Available with USA manufacturing; confirm country of manufacture for your order.
![[GLS-100023-00] BBAR Cover Glass — Double Side, 1.6 mm, 25 × 16 in](/web/image/product.product/10348/image_1024/%5BGLS-100023-00%5D%20BBAR%20Cover%20Glass%20%E2%80%94%20Double%20Side%2C%201.6%20mm%2C%2025%20%C3%97%2016%20in?unique=8d0e222)
BBAR Cover Glass — Double Side, 1.6 mm, 25 × 16 in
PN: GLS-100023-00
BBAR Cover Glass — Double Side, 1.6 mm, 25 × 16 in. Polished float glass; pencil/C edge; scratch/dig 60/40 or better. Four-layer broadband anti-reflection coating on both sides. Both-side catalog optical specification: average R ≤0.35% and average T ≥95% at 420–680 nm, 0–15° incidence. Coating nonuniformity ±2.5%. BBAR product family, distinct from HEA glass. Catalog specifications require confirmation for the supplied material. Contact us for current pricing, availability and application review. Available with USA manufacturing; confirm country of manufacture for your order.
![[GLS-100022-00] BBAR Cover Glass — Double Side, 1.1 mm, 25 × 16 in](/web/image/product.product/10347/image_1024/%5BGLS-100022-00%5D%20BBAR%20Cover%20Glass%20%E2%80%94%20Double%20Side%2C%201.1%20mm%2C%2025%20%C3%97%2016%20in?unique=8d0e222)
BBAR Cover Glass — Double Side, 1.1 mm, 25 × 16 in
PN: GLS-100022-00
BBAR Cover Glass — Double Side, 1.1 mm, 25 × 16 in. Polished float glass; pencil/C edge; scratch/dig 60/40 or better. Four-layer broadband anti-reflection coating on both sides. Both-side catalog optical specification: average R ≤0.35% and average T ≥95% at 420–680 nm, 0–15° incidence. Coating nonuniformity ±2.5%. BBAR product family, distinct from HEA glass. Catalog specifications require confirmation for the supplied material. Contact us for current pricing, availability and application review. Available with USA manufacturing; confirm country of manufacture for your order.
![[GLS-100021-00] BBAR Cover Glass — Double Side, 0.7 mm, 25 × 16 in](/web/image/product.product/10346/image_1024/%5BGLS-100021-00%5D%20BBAR%20Cover%20Glass%20%E2%80%94%20Double%20Side%2C%200.7%20mm%2C%2025%20%C3%97%2016%20in?unique=8d0e222)
BBAR Cover Glass — Double Side, 0.7 mm, 25 × 16 in
PN: GLS-100021-00
BBAR Cover Glass — Double Side, 0.7 mm, 25 × 16 in. Polished float glass; pencil/C edge; scratch/dig 60/40 or better. Four-layer broadband anti-reflection coating on both sides. Both-side catalog optical specification: average R ≤0.35% and average T ≥95% at 420–680 nm, 0–15° incidence. Coating nonuniformity ±2.5%. BBAR product family, distinct from HEA glass. Catalog specifications require confirmation for the supplied material. Contact us for current pricing, availability and application review. Available with USA manufacturing; confirm country of manufacture for your order.
